Contemporary Research Co. ICC1-232
RS-232 TV Controller

OUR PART #:  CRC-ICC1-232

The ICC1-232 RS-232 TV Controller delivers versatile 1-way control for power, volume, channels...
Learn More
Our Price: $302.00
List Price: $355.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Contemporary Research Co. ICC1-232
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ICC1-232 RS-232 TV Controller delivers versatile 1-way control for power, volume, channels, and available control lockout commands, receiving iC-Net network commands over the same broadband coax that carries the CATV channels. Compact in size and price, the ICC1-232 features discrete power control, channel tuning, volume control, and local control lockout. Tuning options include analog and HDTV format channels, as well as AV inputs.

High-speed 1-way control is possible through the same RF cable that carries the TV channels, creating networked operation of distributed media systems without adding control wiring. Compatible with the Contemporary Research SignStream™, iC-Web, and iC Commander software, the ICC1-232 can be networked with up to 4000 display controllers. For custom systems applications, the ICC1-232 and other CR display controllers can be accessed from a single RS-232 or Telnet port on an ICE-HE Ethernet Head.

Applications include media distibution and control for educational television systems, theme parks, museums, government facilities, arenas, convention centers, airports and corporate video networks.

Contemporary Research CRC-ICC1-232 Features:

  • Controls most brands of RS-232-controlled displays
  • Delivers absolute power control with discrete RS-232 commands
  • Tunes analog or HDTV format channels
  • Intelligent volume level and mute operation
  • Enables/disables local and IR display control (if supported by display)
  • Receives 1-way individual and zone commands from a single RS-232 port on the ICE-HE
  • Provides LED feedback for network and RS-232 control
  • Restores all power and channel status after loss of power from data stored in non-volatile memory
  • Mounts on the back of display for simplified control and RF installation
  • Operates with SignStream, iC Commander, and iC-Web software, as well as from RS-232 protocol from a custom-programmed PC or control system
  • Includes RF loop cable, mounting Velcro, and 12VDC power supply
  • Optional CC-232 RS-232 control cable (specify make, model, and cable length

Contemporary Research CRC-ICC1-232 Specifications:

  • Physical:
    • Size: 5.5" [140mm] wide x 1.1" [28mm] high x 3.4" [86mm] deep
    • Weight: 8 oz [226g]
    • Enclosure: All aluminum with durable black powder coat paint
    • Mounting: Mounts rear of display

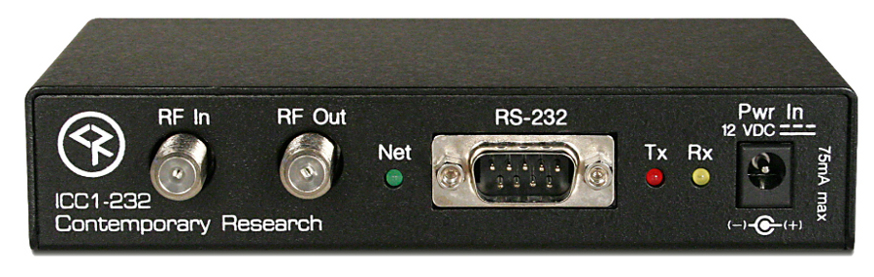

  • Front Panel:
    • RF In: 'F', female, 75 ohm impedance, RF from CATV system, iCC-Net control
    • RF Out: ‘F', female, 75 ohm impedance, RF to TV
    • Low-loss internal tap: less than -1.5 dbmV loss
    • Net LED: Green LED for iC-Net bus and DC power, flashes once per second if active
    • RS-232: DB-9 male connector, baud rates from 1200 to 115,000 baud
    • Optional CC-232 RS-232 available to match specific makes and models
    • Tx LED: Red LED lights when RS-232 information is sent
    • Rx LED: Yellow LED lights when RS-232 information is received
    • Power In: 2.1mm coaxial jack (inside center conductor positive), 75 mA maximum
    • 11.5 to 16.5 VDC, 12 VDC typical (may be unregulated)
    • DIP Switches: Located on bottom of unit, sets RS-232 code operation and device number
  • Current Control Codes:
    • LG - Commercial TVs, older prosumer
    • NEC - M,P,S,V,X-AVT series TVs
    • Samsung - MD, ME, H series commercial TVs
    • Samsung Ex-Link - Channel commands up to 63
    • Sharp - Many prosumer TVs
    • Sunbrite - Power and channel control, no volume commands
  • ICC-Net:
    • Operation: 1-way control, carried over the same RF coax connection as TV channels
    • Data Receive: Mid-band VHF, 74.7MHz, sent from IC Head-End Network Controller , -25 to +35 dBmV signal level
  • Includes:
    • 18" RF Loop cable
    • Space-saving 12 VDC 500 mA digital switching power supply (North American shipments only)
    • Mounting Velcro for unit
  • Options:
    • CC-COM RS-232 Null Model Control Cable (most makes of TVs)
    • CC-232 RS-232 Control Cable (specify make, model, and length)
