Sennheiser EWD1-ME2
Evolution Wireless D1 Series Digital Bodypack System with ME2 Lavalier Microphone


Sale Price: $499.95
List Price: $849.00
You save 41%! (Low Price Guarantee)
In Stock

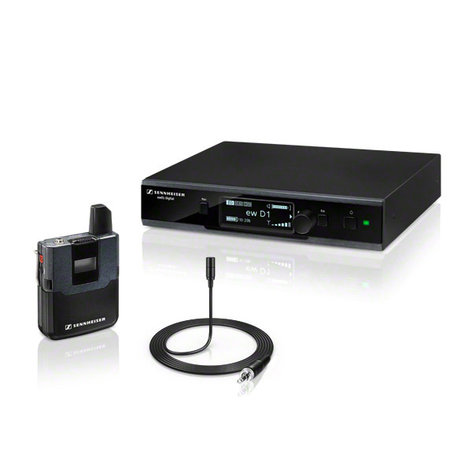

The Sennheiser EWD1-ME2 is an Evolution Wireless D1 Series digital wireless bodypack system that includes an ME2 lavalier microphone for live stage use.

Evolution Wireless D1 is a digital sound transmission system that makes no compromises when you need to rely on sound quality or user-friendliness during gigs or live events. This microphone system can run up to 15 output lines in parallel - and independently adjust the sensitivity of every transmission. The EWD1-ME2 has up to 15 compatible channels (under optimal conditions) in license-free 2.4GHz band, with intelligent channel back-up that prevents interference and allows co-existence with Wi-fi & Bluetooth. Additionally, it comes with automatic frequency management, audio effects (EQ, de-esser, Automatic Gain Control) and an iOS/Android app for remote control and monitoring of the system.

Sennheiser EWD1-ME2 Includes:

  • EM-D1 rackmount receiver
  • SK-D1 bodypack transmitter
  • ME 2 Lavalier Microphone
  • NT-12 power supply
  • Transport case
  • User manual

Sennheiser EWD1-ME2 Features:

  • Unobtrusive professional clip-on lavalier microphone
  • Lightweight bodypack transmitter
  • Up to 15 compatible channels in license-free 2.4 GHz band
  • Automatic frequency management
  • Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
  • Audio effects: equalizer, de-esser, automatic gain control
  • iOS & Android app for remote control and monitoring of the system
  • Sturdy metal housing

Sennheiser EWD1-ME2 Specifications:

  • Overall System:
    • Frequency Response:  20 Hz - 20 kHz
    • Dynamic Range:  > 135 dB (A)
    • THD, Total Harmonic Distortion:  typ. < 0,1 %
    • Audio Sampling:  24 bit/48 kHz
    • Signal-to-Noise Ratio:  >/= 105 dB (A)
    • RF Frequency Range:  2,400 to 2,483.5 MHz
    • Modulation:  GFSK with back channel
    • Transmission Method:  TDMA, time diversity, frequency diversity, fast switching antenna diversity
    • Latency:  3.9 ms
    • Audio Codec:  APT-X Live
    • Operating Temperature:  – 10 °C to +55 °C
    • Storage Temperature:  – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
  • EM-D1 Receiver:
    • Latency:  Multi-frequency targets
    • RF Sensitivity:  <-90 dBm
    • RF Output Power:  Back channel 10 mW/100 mW (country-specific)
    • Audio Output:  Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
    • Low-Cut Filter:  –3 dB at 120 Hz
    • Equalizer:  7-band graphic equalizer
    • Automatic Gain Control (AGC):  Compression/expansion with automatic make-up gain function
    • Display:  OLED
    • Connection:  XLR-1/4" (6.3 mm) jack
    • Antenna Connector:  2 x Rev-SMA
    • Network Socket:  RJ45
    • Network Protocol:  Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
    • Power Supply:  12 V DC hollow jack
    • Current Consumption:  350 mA
    • Weight:  approx. 824 g
  • SK-D1 Bodypack Transmitter:
    • RF Output Power:  Adaptive, up to 100 mW (country-specific)
    • Connection:  3.5 mm jack socket, lockable
    • Weight:  approx. 85 g
    • Microphone Frequency response: 50 Hz - 20 kHz
    • Max. Input Level:  2.2 V RMS
    • Line Frequency response:  20 Hz - 20 kHz
    • Max. Input Level:  3.3 V RMS
    • Input Impedance:  1 MegaOhm
    • Input Sensitivity:  Automatic sensitivity adjustment
    • Battery Specification:  2 x AA size battery (1,5V), Operating time: typ. 6 h
    • Accupack:  BA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h (optional accessory)
  • ME 2 Lavalier Microphone:
    • Microphone:  Pre-polarized condenser
    • Sensitivity:  20 mV/Pa
    • Pick-up Pattern:  Omnidirectional
    • Max. Sound Pressure Level:  130 dB SPL
