Sennheiser ew D1-835-S Evolution D1 Digital Wireless Handheld System with e835 Capsule

OUR PART #: EWD1-835S MFR #: 505823

Copied to clipboard

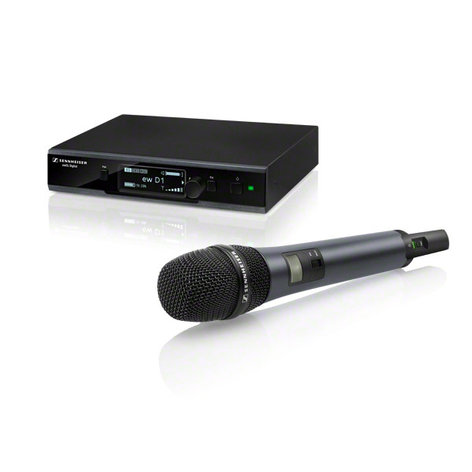

Sennheiser ew D1-835-S Evolution D1 Digital Wireless Handheld System With E835 Capsule Image 1
Sennheiser ew D1-835-S Evolution D1 Digital Wireless Handheld System With E835 Capsule Image 2
sG8nNH8oyLU
1 Video
Sennheiser ew D1-835-S Evolution D1 Digital Wireless Handheld System With E835 Capsule
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Sennheiser EWD1-835S is an Evolution Wireless D1 Series digital wireless handheld microphone system that includes an e835 cardioid capsule attached to an SKM-D1 handheld transmitter, which also features a mute switch for stage use.

Includes

  • EM-D1 rackmount receiver
  • SKM-D1 handheld transmitter with e835 cardioid capsule
  • MZQ microphone clamp
  • NT-12 power supply
  • Transport case
  • User manual

Features

  • Includes e835 capsule, interchangeable with other Evolution series capsules
  • Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
  • Automatic frequency management
  • Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
  • Audio effects: equalizer, de-esser, automatic gain control
  • iOS & Android app for remote control and monitoring of the system
  • Sturdy metal housing

Specifications

  • Overall System:
    • Frequency Response: 20 Hz - 20 kHz
    • Dynamic Range: > 135 dB (A)
    • THD, Total Harmonic Distortion: typ. < 0,1 %
    • Audio Sampling: 24 bit/48 kHz
    • Signal-to-Noise Ratio: >/= 105 dB (A)
    • RF Frequency Range: 2,400 to 2,483.5 MHz
    • Modulation: GFSK with back channel
    • Transmission Method: TDMA, time diversity, frequency diversity, fast switching antenna diversity
    • Latency: 3.9 ms
    • Audio Codec: APT-X Live
    • Operating Temperature: – 10 °C to +55 °C
    • Storage Temperature: – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
  • EM-D1 Receiver:
    • Latency: Multi-frequency targets
    • RF Sensitivity: < -90 dBm
    • RF Output Power: Back channel 10 mW/100 mW (country-specific)
    • Audio Output: Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
    • Low-Cut Filter: –3 dB at 120 Hz
    • Equalizer: 7-band graphic equalizer
    • Automatic Gain Control (AGC): Compression/expansion with automatic make-up gain function
    • Display: OLED
    • Connection: XLR-1/4" (6.3 mm) jack
    • Antenna Connector: 2 x Rev-SMA
    • Network Socket: RJ45
    • Network Protocol: Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
    • Power Supply: 12 V DC hollow jack
    • Current Consumption: 350 mA
    • Weight: approx. 824 g
  • SKM1 Handheld Transmitter:
    • Frequency Response: 50 Hz - 20 kHz
    • RF Output Power: Adaptive, up to 100 mW (country-specific)
    • Display: LCD
    • Weight: approx. 280 g incl. microphone head
    • Input Sensitivity: Automatic sensitivity adjustment
    • Battery Specification: 2x AA size battery (1.5 V), Operating time: typ. 6 h
    • Accupack: BA 10 (Li-Ion, 3.7 V), Operating time: typ. 11 h (optional accessory)
