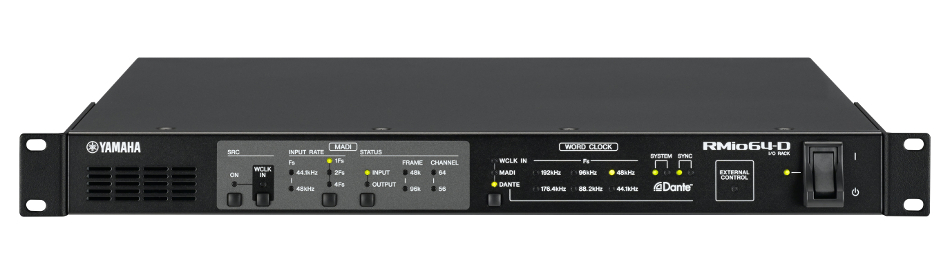

Yamaha RMio64-D
Rackmount Remote I/O Conversion Box with MADI and Dante Connections


Call for price! Not available online.

The ideal audio interface should be essentially unnoticeable. The sound must not change during format conversion in the digital domain, and no added noise can be tolerated. Performance should not be too dependent on user expertise or skill, either. It should be easy to connect devices over any practical distances, and flexibly work around problems.The RMio64-D Dante/MADI conversion I/O rack solves these issues, and supports a wide range of broadcast and live sound applications with extraordinary flexibility - and without getting in the way.

Bridging Formats with Seamless Efficiency
Word clock synchronization often becomes an issue when connecting different audio formats, but since the RMio64-D includes built-in sample rate converters on inputs and outputs, you can simply connect it and forget it without having to worry about noise or dropouts.

Dante Redundancy for Resilient Infrastructure
Audio interruptions must be avoided at all costs in commercial applications. Dante interfaces feature primary and secondary ports that make it easy to set up redundant connections for maximum reliability. If a cable is accidentally unplugged or a network switch fails, the system will continue to operate without interruption. Alternatively, the dual Dante ports can be used for simple daisy chain connections (redundancy is not available for daisy-chain connections).

MADI Redundancy via Alternative Cable Types
In addition to Dante network redundancy, redundant MADI connections can be made via optical and coaxial cables so that if the primary input signal is interrupted the system automatically switches to the second connection. Optical cables are ideal for long-distance transmission.

Dual MADI Connectors Offer More than Just Conversion
Two sets of MADI connections not only facilitate simple conversion between Dante and MADI formats, but MADI signals received via an optical input, for example, can be retransmitted via a coaxial output. So while converting MADI to Dante, the MADI signal can be simultaneously routed directly to another MADI device. This kind of flexibility is one of the RMio64-D strengths.

CL, QL, and R: Tight Integration Plus Nuage Support
RMio64-D mounting, Dante patching, and SRC settings can all be remotely controlled from a CL or QL series console touch screen (to be implemented in a future update). The RMio64-D is a standout performer on its own, and as part of a Nuage system it offers Direct Monitoring functionality for recording, precision VST System Link synchronization, and remote controllability via Nuage Workgroup Manager system management software.

Yamaha RMio64-D Includes:

  • Owner's manual
  • AC power cord

Yamaha RMio64-D Specifications:

  • Sampling Frequency Rate:
    • Internal:
      • 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm)
      • 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm)
      • 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm)
      • 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm)
      • 176.4kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm)
      • 192kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm)
    • External:
      • 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
      • 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
      • 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
      • 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
      • 176.4kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
      • 192kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
  • MADI Channels & Formats: fs=44.1kHz/48kHz:MADI Single fs 44.1/48k frame, 56/64 channels /fs=88.2kHz/96kHz:MADI Double fs 44.1/48k frame, 28/32 channels / MADI Doublefs 88.2/96k frame, 28/32 channels / fs=176.4kHz/192kHz:MADI Quad fs 44.1/48kframe, 14/16 channels
  • SRC:
    • SRC Lock Range: 38.59 kHz – 216 kHz
    • Sample Rate Ratio Limit: 6:1
  • Power Requirements:
    • US/Canada:120V 60Hz
    • Japan: 100V 50/60Hz
    • China:110-240V 50/60Hz
    • Korea: 220V 60Hz
    • Other: 110-240V50/60Hz
  • Power Consumption:  25W
  • Digital I/O Characteristics:
    • Terminal:  Primary / Secondary
      • Format:  Dante
      • Data Length:  24-bit
      • Level:  1000Base-T
      • Connector:  etherCON x2
    • Terminal:  MADI IN 1 - 64
      • Format:  AES 10-2008 (MADI)
      • Data Length:  24-bit
      • Level:  ECL; -31 to -14 dBm
      • Connector:  BNC Connector; SC Connector
    • Terminal:  MADI OUT 1 - 64
      • Format:  AES 10-2008 (MADI)
      • Data Length:  24-bit
      • Level:  ECL; -20 to -14 dBm
      • Connector:  BNC Connector; SC Connector
  • Control I/O Characteristics:
    • Terminal:  Word Clock In
      • Level:  TTL / 75 Ohm terminated
      • Connector:  BNC
    • Terminal:  Word Clock In for SRC
      • Level:  TTL / 75 Ohm terminated
      • Connector:  BNC
    • Terminal:  Word Clock Out
      • Level:  TTL / 75 Ohm
      • Connector:  BNC
    • Terminal:  System Link Out
      • Level:  1.0±0.2Vp-p / 75 Ohm
      • Connector:  BNC
  • Physical:
    • Dimensions (WxHxD):  18-7/8" x 1-3/4" x 14-3/4" (480mm x 44mm x 374mm)
    • Net Weight:  10.4 lbs. (374mm)
    • Operating Temperature Range:  0°C to 40°
    • Storage Temperature Range:  -20°C to 60°C
