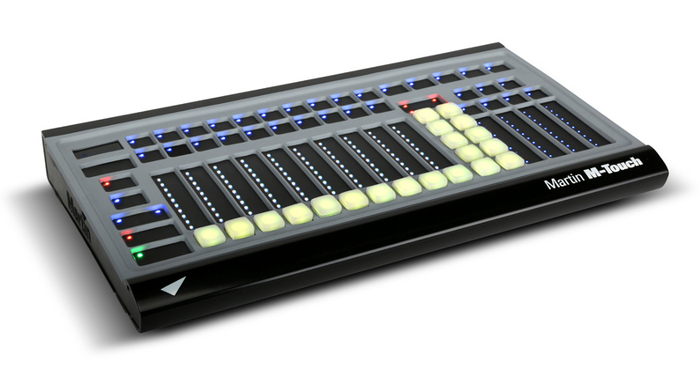

Elation Pro Lighting M-Touch
Portable DMX Control Surface

OUR PART #:  M-TOUCH

Elation's M-Touch is a powerful yet simple control surface for the Elation M-Series™ controllers, the most affordable professional lighting solutions on the market.
Learn More
Our Price: $480.00
List Price: $600.00
You save 20%!
Write the first review.
Elation Pro Lighting M-Touch
Qty:
In Stock

Related Products

Elation's M-Touch is a powerful yet simple control surface for the Elation M-Series™ controllers, the most affordable professional lighting solutions on the market. Fully compatible with all M-Series consoles and M-PC™ software, Elation M-Touch is a plug-and-play solution with an innovative control surface like no other lighting console. Fourteen FSR faders allow control of playbacks and fixture parameters while twenty velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the M-Touch control panel. Elation M-Touch comes with one DMX 512 Universe for direct control of any compatible DMX device.

Elation Professional M-Touch Features:

  • Truly affordable console surface for both smaller applications and professional use
  • Rugged aluminum design for durability
  • The most powerful controller of its class with a full 512 DMX channels, expandable to 65,000 channels

Elation Professional M-Touch Specifications:

  • Physical:
    • Dimensions (LxWxH): 15.5" x 8.6" x 1.8" (394 x 218.5 x 46.5 mm)
    • Weight: 3.3 lbs (1.5 kg)
  • Control / User Interface:
    • Bank Navigation Up/Down with numerical display
    • Main Go section: Snap, Release, Pause, and Go buttons
    • Command Buttons: Record, Edit, Update, Load, Clear
  • Multifunction Mode Select button:
    • Fixture Selection buttons: Last, Next, Highlight
    • 4 x Parameter Select buttons
    • 4 x Parameter Adjust touch faders
    • 10 x Function velocity pads
  • Playback: 10 x Playback touch faders with 3 buttons (2 x touch pad, 1 x velocity pad)
  • System integration: Unlocks 1 x DMX universe when connected to M-PC
  • Connections:
    • DMX data link: 1 x 5-pin locking XLR
    • Windows PC: 1 x USB 2.0
  • Electrical:
    • Power source: 5 VDC over USB
    • Maximum current: 500 mA
  • Thermal: Operating temperature: 32° – 122°F (0° – 50°C)
  • Construction:
    • Housing: Aluminum, steel, plastic
    • Mounting: VESA 75x75, 100x100
    • Security: K-Lock locking slot
    • IP Rating: IP20
  • Included Items: 4.9 ft (1.5 m) USB cable
