DPA Microphones FIDF34-2
Dual-Ear Directional Headset Microphone with 3.5mm Locking Connector in Beige

OUR PART #:  FIDF34-2

Our Price: $819.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FIDF34-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

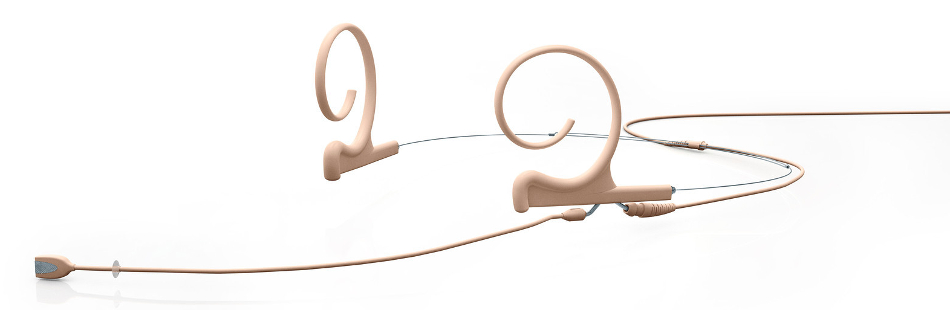

The DPA FIDF34-2 d:fine headset has the leading position when it comes to headworn microphones by combining absolute pristine audio quality with unique and simple mechanical solutions along side an extensive accessory line.

The d:fine has been ergonomically designed to fit easily and seamlessly. It will adjust to fit any ear size and head shape while mounting on either the left or right side of the head. Just by rotating the boom, the microphone can be moved from left to right ear, or into the optimum position.

The d:fine directional polar pattern rejects side and background noise while creating higher separation from nearby sound sources which improves the gain-to-feedback ratio and gives more channel control. Yet still, natural voice intelligibility is preserved along with its very high SPL capabilities one can both speak and sing with no hint of distortion.

Intensive protection against pop/wind noise is integrated in the microphone design and windscreens are included. Also included is a capsule protection cap, a cable clip which anchors the cable to your clothing and a color coded cable clip offering easy recognition of a specific headset among many.

A service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths/colors/connectors and is valuable for servicing broken cables.

The DPA d:fine is delivered in a neat, professional roadworthy box with extra room for accessories like transmitters, batteries and more.

DPA FIDF34-2 Includes:

  • Microphone (boom, dual ear-hook, cable)
  • Locking 3.5mm Mini-Jack Connector
  • Make-up and moisture filter (DUA0523) pre-mounted on the mic
  • Five identification rings and one make-up cover (DUA0585)
  • Four windscreens (DUA0531)
  • Carrying case

DPA FIDF34-2 Specifications:

  • Directional Characteristics:  Cardioid
  • Principle of Operation:  Pressure gradient
  • Cartridge Type:  Pre-polarized condenser
  • Frequency Range:  20 Hz - 20 kHz
  • Frequency Range, +/- 2 dB, near field 0.8 to 1.2 in (2 to 3 cm):  100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz
  • Sensitivity, Nominal, +/- 3 dB at 1 kHz:  6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent Noise Level, A-weighted:  Typ. 28 dB(A) re. 20 µPa (max. 30 dB(A))
  • Equivalent Noise Level, ITU-R BS.468-4:  Typ. 40 dB (max. 42 dB)
  • S/N Ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 66 dB(A)
  • Total Harmonic Distortion (THD):  < 1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine
  • Dynamic Range:  Typ. 95 dB
  • Max. SPL, Peak Before Clipping:  144 dB
  • Output Impedance:  From MicroDot: 30 to 40 ohm. From DAD6001-BC: 100 ohm.
  • Cable Drive Capability:  Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Output Balance Principle:  Signal balanced with DAD6001-BC XLR adapter
  • Common Mode Rejection Ratio (CMRR):  > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
  • Power Supply (for full performance):  Min. 5 V to max. 50 V through DPA adapter for wireless systems. 48 V phantom power +/- 4 V with DAD6001-BC XLR adapter.
  • Current Consumption:  Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter.
  • Connector:  Locking 3.5mm Mini-Jack
  • Color:  Beige
  • Weight:
    • Microphone Boom:  0.03 oz (0.8 g)
    • Earhook:  0.04 oz (1.1 g)
    • Cable:  0.23 oz (6.6 g)
    • Total:  0.30 oz (8.5 g)
  • Microphone Head Size (HxWxD):  0.37 x 0.21 x 0.11 in (9.5 x 5.3 x 2.9 mm)
  • Capsule Diameter:  0.2 in (5.4 mm)
  • Mic Boom Length:  4.7 in (120 mm)
  • Cable Length:  4.3 ft (1.3 m)
  • Cable Color:  Beige
  • Cable Diameter:  1.6 mm (0.06 in)
  • Polarity:  +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
  • Electro Magnetic Compatibility (EMC):  Fully compatible
  • Temperature Range:  -40 °F to 113 °F (-40 °C to 45 °C)
  • Relative Humidity (RH):  Up to 90%
