Palmer PWT05
5-Output Universal Pedalboard Power Supply


Our Price: $129.95
List Price: $214.95
You save 40%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

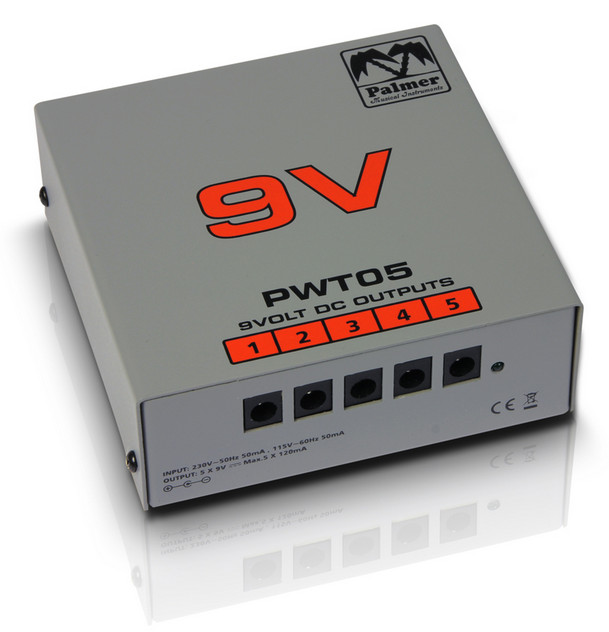

The PWT05 is a 9V power supply for pedal boards and offers 5 electrically isolated 9V DC outputs. Each of the five outputs delivers up to 120 mA!

Thus this power supply is capable of powering far more than five normal effects units (which normally have a power consumption of approx. 20 mA). The power supply has a compact, rugged housing with IEC socket, voltage selection switch and power switch.

Palmer PWT05 Specifications:

  • Product type: power supply
  • Type: multiple power supply
  • Mains connector: IEC mains cord
  • Input voltage: 100 - 250 V
  • Outputs: 5
  • Output connectors: 2.1 x 5.5 mm
  • Output voltage: 9 V
  • Max. output current: 125 mA per output
  • Isolated outputs: yes
  • Polarity: center negative
  • Cord length: 25 - 50 cm
  • Display: Power
  • Controls: mains voltage selector, Power
  • Width: 105 mm
  • Depth: 105 mm
  • Height: 40 mm
  • Weight: 0.985 kg
  • Features: Included cable: 1 x daisy chain 1in5, 5 x 50 cm, 5 x 25 cm, 1 x current merge
