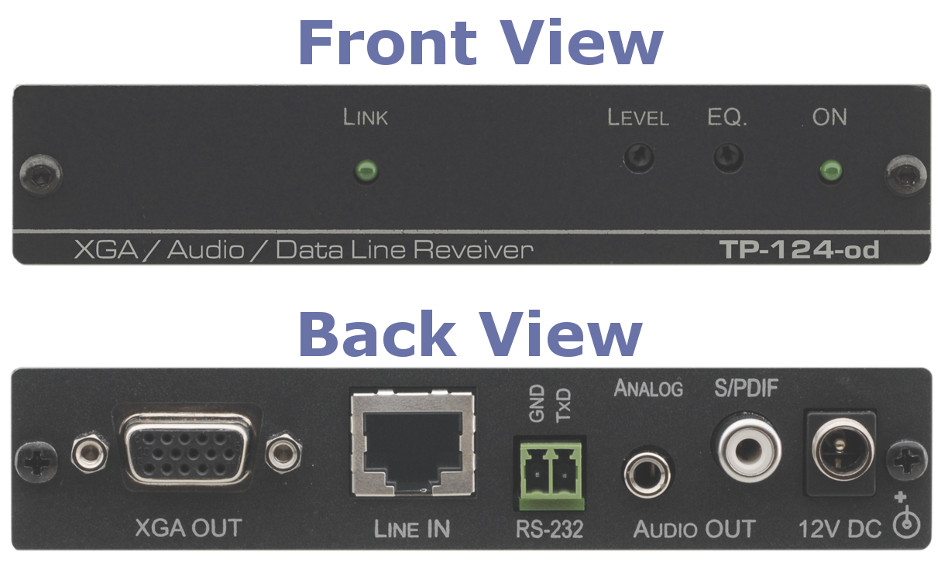

Kramer TP-124-od
Computer Graphics Video, Stereo & S/PDIF Audio and RS-232 over Twisted Pair Receiver with EMP Protection

OUR PART #:  TP-124-OD

The Kramer TP-124-od is a twisted pair receiver for computer graphics video, unbalanced stereo audio and RS-232 data signals.
Learn More
Our Price: $344.00
List Price: $430.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-124-od
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer TP-124-od is a twisted pair receiver for computer graphics video, unbalanced stereo audio and RS-232 data signals. The TP-123-od converts computer graphics, audio, and RS-232 inputs to a twisted pair signal, and the TP-124-od converts the twisted pair signal back into computer graphics, audio and RS-232 data signals.

Applications:

  • Presentation and multimedia applications.
  • Long range graphics distribution for schools,hospitals, security, and stores.
  • Simple connection to presentation system via a single CAT-5 cable.

Kramer TP-124-od Features:

  • Max. Resolution - WUXGA & 1080p.
  • HDTV Compatible.
  • EMP Protection - Protected from voltage surgesinduced by the electromagnetic field of nearby lightning. The system does notprotect against direct lightning strikes.
  • Twisted Pair Connectors - RJ-45 connectors.
  • Audio Outputs - Unbalanced stereo and S/PDIF (24-bit48kHz) simultaneously.
  • Level (Gain) and EQ (Peaking) Controls.
  • System Range - Up to 100m (300ft), greater distancespossible depending on resolution and cable.
  • Cable - UTP (unshielded twisted pair) or STP(shielded twisted pair) such as CAT 5.
  • Power Connect™ System - A single connection to thetransmitter or receiver powers both units when the devices are within 50m(150ft) of each other.
  • Unidirectional RS-232 - Maximum bitrate 19.2kbps.
  • RS-232 Connect™ System - The unit can send RS-232commands on the twisted pair cable on top of the video signal. All the systemunits must have RS-232 Connect to use this feature.
  • Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1Urack space with the optional RK-3T rack adapter.

Kramer TP-124-od Specifications:

  • Input:  1 RJ-45 OUT connector
  • Outputs:  Video: 1VGA/UXGA on a 15-pin HDconnector; Audio: 1 audio S/PDIF RCA connector; 1 audio Analog 3.5mm mini jack
  • Max. Output Level:  Video: 1V; Audio: 2.5V
  • Communication:  RS-232 on 2-pin terminal block;maximum bitrate 19200bps
  • Controls:  Level: –7.5dB to +4.4dB,EQ.: 0dB to+33dBu (130m) @50MHz
  • Max. Resolution:  WXGA & 1080p
  • S/N Ratio:
    • Video: 58dB unweighted, 68.3dB @5MHz weighted
    • Audio: <–80dB
  • Total Gain:
    • Audio: Analog/analog: 0dB
    • Analog/SPDIF: –12dBFS
  • Coupling:  AC
  • THD+N Audio:  <0.01%
  • Power Consumption:  12V DC,320mA
  • Dimensions (WxDxH):  4.7” x 2.95” x 0.98” (12cmx 7.5cm x 2.5cm)
  • Weight: 0.67 lbs. (0.3kg) approx
  • Included Accessories:  Power supply
  • Options:  RK-3T 19" rack adapter (sold separately)
