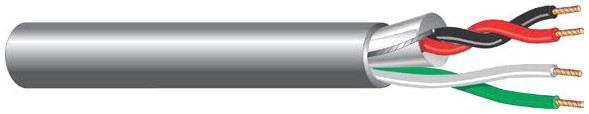

West Penn 356 [PRICED PER FOOT]
4-Conductor Wire - 2 Shielded , 2 Unshielded

OUR PART #:  356-BY-FOOT

This 18 gauge, 4 conductor wire is designed for indoor applications like intercom, security, sound, audio, background music and power limited control circuits.
Learn More
Our Price: $0.30
List Price: $0.46
You save 35%!

5.0 / 5

★★★★★ 1 Review. Write Yours
West Penn 356 [PRICED PER FOOT]
Qty:
In Stock

Related Products

This 18 gauge, 4 conductor wire is designed for indoor applications like intercom, security, sound, audio, background music and power limited control circuits.

NOTE: Priced per foot.

West Penn 356 Specifications:

  • Conductor: 20, 18 AWG Bare Copper
  • Stranding: 7x28, 7x26
  • Insulation Material: PVC
  • Insulation Thickness: 0.010" Nom.
  • Number of Conductors: 4 (2 shielded, 2 unshielded)
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Drain wire on the outside of the shield, Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.015" Nom.
  • Overall Cable Diameter: 0.200" Nom.
  • Approximate Cable Weight: 42.4lbs/1M' Nom.
  • Flame Rating: UL 1666 Riser Flame Test
  • Temperature Rating: -4°F to 140°F
  • Operating Voltage: 300V RMS
  • Max. Capacitance Between Conductors @ 1kHz: 60pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1kHz: 108 pf/ft Nom.
  • DC Resistance per Conductor @ 68°F: 10.5, 6.6Ohms/1M' Nom.
  • Insulation Colors: Shielded; Black, Red / Unshielded; White, Green
  • Jacket Color: Gray
  • RoHS Compliant: Yes
