Eartec Co CSXTPLUS-5 2-Channel Com-Center Transceiver with Wired to Wireless Interface and 5 Headsets

OUR PART #: CSXTPLUS-5

Copied to clipboard

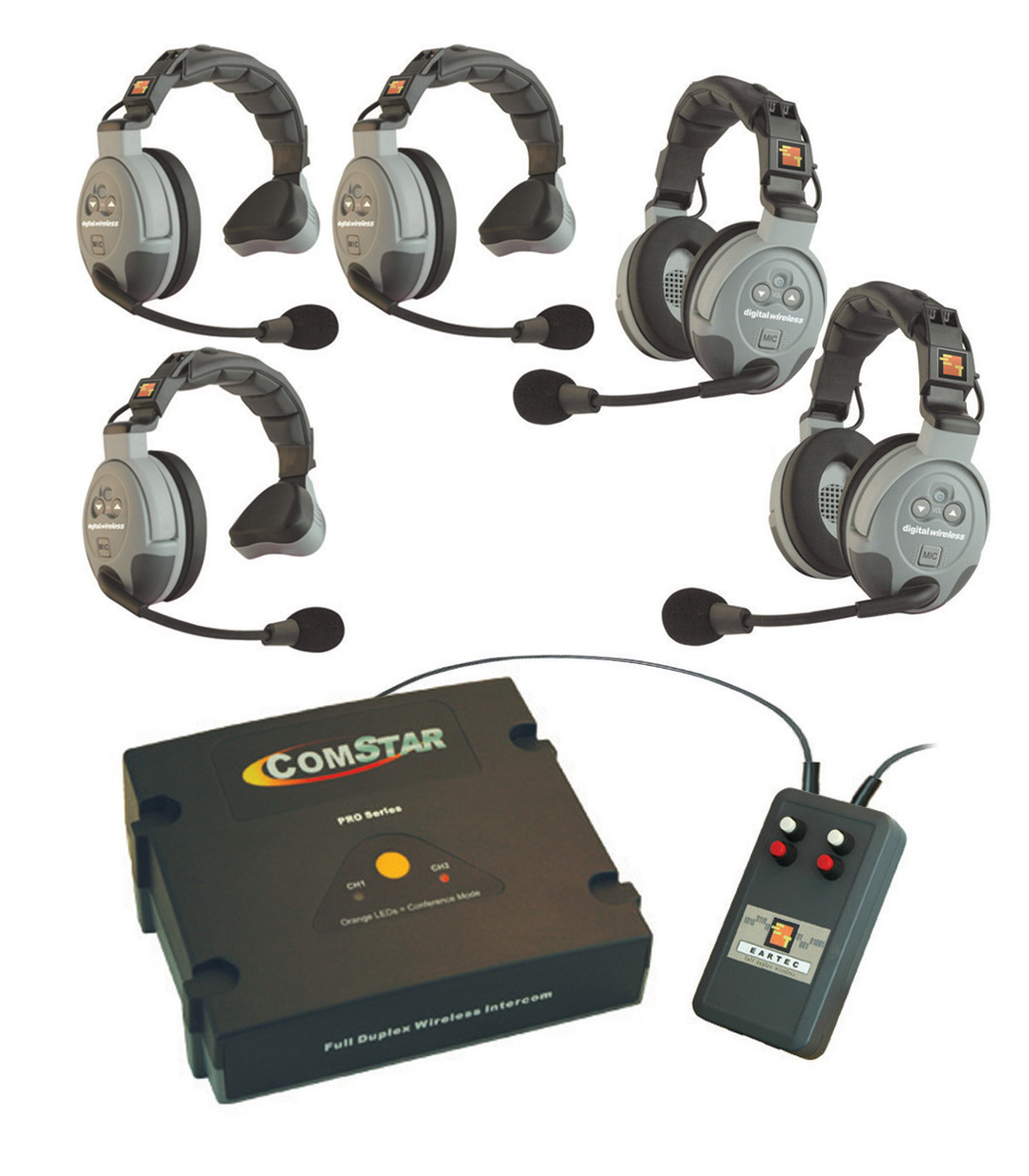

Eartec's CSXTPLUS-5 system features an XT Plus Com-Center with a software controlled interface, plus (5) COMSTAR Headsets: (3) COMSTAR singles and (2) COMSTAR doubles. ...Read more

Eartec Co CSXTPLUS-5 2-Channel Com-Center Transceiver With Wired To Wireless Interface And 5 Headsets Image 1
Eartec Co CSXTPLUS-5 2-Channel Com-Center Transceiver With Wired To Wireless Interface And 5 Headsets
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Eartec's CSXTPLUS-5 system features an XT Plus Com-Center with a software controlled interface, plus (5) COMSTAR Headsets: (3) COMSTAR singles and (2) COMSTAR doubles. The interface connects to the port on the rear of the Com-Center and the wired system. You can also expand the system from here; its signal levels create a seamless audio link allowing up to (8) wireless headsets to communicate with the wired intercom (extra headsets sold separately). Users can then communicate with wired headsets, hands free, simultaneously, and without interconnecting wires.

Eartec COMSTAR Headsets (Double & Single) - An industrial "All in One" full-duplex radio headset from Eartec, the Double features miniaturized circuitry built right into the earcups. It's a breakthrough self-contained design eliminating the requirement for a cable or belt-pack transceiver.

The Double weighs in at 12 oz., just about the same as a traditional headset that requires a belt-pack. It can be worn on left or right thanks to the microphone being able to swivel over the top. There's also a handy microphone mute switch located right on the earcup, along with a sealed membrane assembly featuring On/Off and volume controls. It comes with a rechargeable Lithium battery that can run up to 10 hours.

The Single has all the features of the Double, but uses one earcup rather than two.

There is no transmission delay with these headsets, and they're not voice activated. Up to 8 users can simultaneously talk just like using a regular telephone. Their signal range is 800 yards.

Eartec CSXTPLUS-5 XT Plus Com Center Features:

  • Outstanding Range - Full duplex communication up to 400 yards in any direction from the Com-Center
  • Dual Channel with Conferencing - 2 groups of 4 users communicate separately or all together in conference mode
  • Digital, Full Duplex Voice - Dect frequency band (1900 mHz) is reserved by FCC for “PCS” voice communication only
  • Expandable – Start small (5 headsets included), then add field programmable headsets, up to (8) total.
  • Totally Portable – AC wall plug, rechargeable battery (6 hrs) and AA disposable battery sled included
  • Simple/Instant Setup – Self tuning, no remote antenna required
  • No FCC License Required – this version is for the USA FCC license

Eartec COMSTAR Specifications:

  • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
  • Frequency:
    • US: 1920 - 1930 MHz
    • EURO: 1880 - 1900 MHz
  • Weight 12 oz
  • Channel Bandwidth: 1.728 GHz
  • Modulation Type: GFSK
  • Transmission Speed: 1.152 Mbps
  • Duplexing: Time Division Duplexing (TDD)
  • Speech Encoding: ADPCM/32 bits/sec
  • RF Accessing: Time Division Multiple Access (TDMA)
  • Range: 400m in open space
  • Base Power Supply:
    • AC adapter:
      • Input: 110-40VAC
      • Output: 9.0VDC, 1000ma
    • Headset Power Supply:
      • Rechargeable Lithium: 3.7V/1000 mAh
    • Charger Power Supply:
    • AC Adapter:
      • Input: 110-40VAC
      • Output: 5.0V
    • Charge Time 6 Hrs.
    • Operation Time: 10 Hrs.
    • Normal Condition of Use: 0° C - 40° C
    • Storage Temperature: -10° C - 60° C
