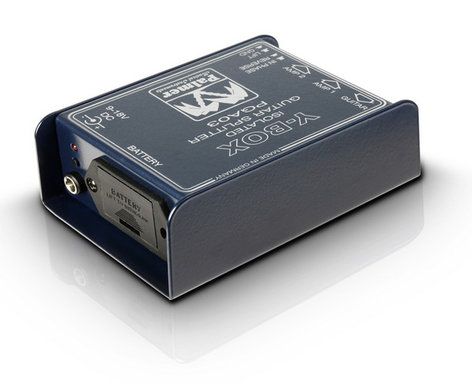

Palmer PGA03
Y-Box Splitter for Guitars

OUR PART #:  PGA03

When I run my guitar into two amps simultaneously, I always get a loud hum".
Learn More
Our Price: $169.95
List Price: $339.95
You save 50%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Palmer PGA03
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

When I run my guitar into two amps simultaneously, I always get a loud hum". This is a rather common problem, often discussed in the technology section of relevant industry magazines. The Palmer Y box is the solution. Converting the hi-Z guitar signal, the FET input circuitry also drives a transformer which routes the ungrounded signal to the output to eliminate ground loop hum. 9V battery operation is recommended.

The PGA03 Y-box can also be used as a line driver for long cable runs. Also, the PGA03 features a phase reverse switch for the AMP 2 output when using pre-amps or amps that are out of phase.

Palmer PGA03 Specifications:

  • Product type: splitter
  • Type: active
  • Split type: 1 in 2
  • Inputs: 1
  • Input connectors: 6.3 mm Jack
  • Adjustable input: no
  • Number of split-outputs per canal: 1
  • Output connectors: 6.3 mm Jack
  • THRU outputs/channel: 1
  • Transformer isolated outputs: yes
  • Adjustable output: no
  • Controls: phase, ground lift
  • Display: Power
  • Operating voltage: 9 V DC power supply, 9 V block
  • Width: 125 mm
  • Depth: 80 mm
  • Height: 45 mm
  • Cabinet material: sheet steel
  • Cabinet surface: powder coated
  • Weight: 0.58 kg
