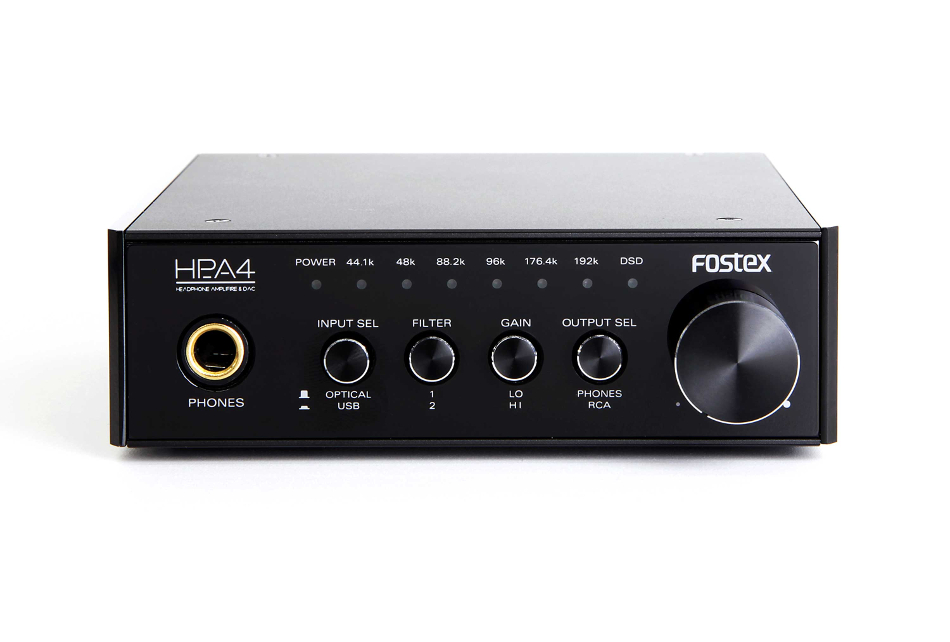

Fostex HP-A4 24-bit 192kHz PCM Plus DSD 5.6MHz USB DAC Headphone Amplifier

OUR PART #: HP-A4 MFR #: AMS-HP-A4

Copied to clipboard

The Fostex HP-A4 is a 24-bit DAC headphone amplifier that offers Direct Stream Digital audio up to 5.6 MHz and Linear Pulse Code Modulation audio up to 24-bit / 192 kHz. ...Read more

Fostex HP-A4 24-bit 192kHz PCM Plus DSD 5.6MHz USB DAC Headphone Amplifier Image 1
Fostex HP-A4 24-bit 192kHz PCM Plus DSD 5.6MHz USB DAC Headphone Amplifier Image 2
Fostex HP-A4 24-bit 192kHz PCM Plus DSD 5.6MHz USB DAC Headphone Amplifier
Our Price: $399.99
List Price: $499.99
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$12/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Fostex HP-A4 is a 24-bit DAC headphone amplifier that offers Direct Stream Digital audio up to 5.6 MHz and Linear Pulse Code Modulation audio up to 24-bit / 192 kHz. The HP-A4 is USB bus-powered without the need for an AC adapter and offers a sleek, sophisticated appearance that will fit in well with the most discerning of tastes.

Fostex HP-A4 Includes:

  • 1x USB Cable (1.0m)
  • 4x rubber foot
  • Manual

Fostex HP-A4 Features:

  • USB bus-powered operation without AC adapter
  • Linear PCM audio up to 24-bit / 192 kHz and DSD audio up to 5.6 MHz playback*
    • *NOTE: Requires a DSD playback software on PC such as the "FOSTEX Audio Player." Both DoP and ASIO acceptable
  • HI/LO Gain selection (10 dB) for wide range of headphone compatibility
  • Asynchronous transfer mode by using the custom made crystal
  • Digital Filter selecting Roll-Off characteristics andCut-Off characteristics according to the audio source
  • Complies with USB Audio Class 2.0 on Windows XP (SP2or later) / Vista / 7 / 8 and Mac OSX 10.6 or later**
    • **NOTE: Requires the dedicated driver for Windows. Not compatible with Windows XP 64-bit.
  • MicroSD (SDHC) card drive on the rear panel for futurefirmware updates***
    • ***NOTE: Does not playback audio data stored on a microSD card

Fostex HP-A4 Specifications:

  • Input:
    • USB Port Sampling Frequency: Up to 24-bit / 192 kHz (PCM), 5.6 MHz (DSD)
    • Interface: USB High Speed
    • Digital Connector: Optical, Square
    • Format: S/PDIF (16-bit / 24-bit: 44.1 kHz - 192 kHz)
  • Output:
    • Phones Connector: Stereo Phone
      • Max Output: 100 mW (32 Ohm loaded)
      • THD: Less than 0.04% at 1 kHz, 32 Ohm loaded, 100 mW
      • Frequency Response: 20 Hz - 80 kHz +/- 3 dB (1 kHz, 32 Ohm loaded, 100 mW, FS 192 kHz)
    • Analog Connector: RCA Pin
      • Reference Output Level: 2 Vrms
      • THD: less than 0.01% at 1 kHz
      • Frequency Response: 20 Hz - 80 kHz (at FS 192 kHz)
    • Digital Connector: Optical, square
      • Format: S/PDIF (16-bit / 24-bit: 44.1 kHz - 192 kHz)
    • General:
    • MicroSD Card Slot: microSD Card (SDHC)
    • Power: USB bus-powered
    • Power Consumption: 2.5 W
    • Dimensions (WxHxD): 113mm x 34mm x 155mm
    • Weight: Approx. 500 g
