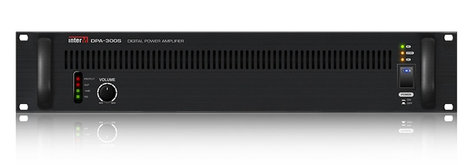

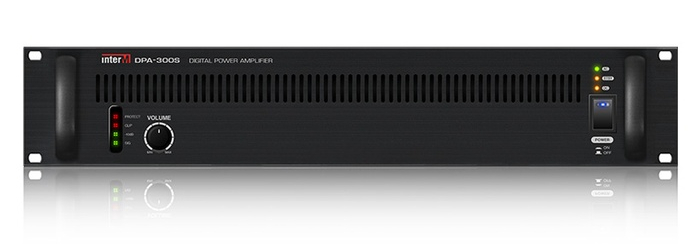

Inter-M Americas Inc DPA-300S
300 Watt Single Channel Class D Amplifier

OUR PART #:  DPA-300S

Housed in 2 RU compact chassis, the Inter-M DPA-300S Class D amplifier offers high power in reduced size and weight.
Learn More
Our Price: $778.40
List Price: $856.24
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Inter-M Americas Inc DPA-300S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Housed in 2 RU compact chassis, the Inter-M DPA-300S Class D amplifier offers high power in reduced size and weight. The combination Class D type amplification circuitry combined with SMPS (Switch mode Power Supplies) creates a high efficiency amplifier offering reduced power consumption and low heat dissipation. The DPA-300S offers both low impedance and high impedance outputs in one package ideal for applications where high power and large quantity of long-line speaker installation is required such as airports, arenas, shopping malls, transportation stadiums or any large scale facilities.

The DPA-300S' class D amplifier offers greater than 90% power efficiency over traditional amplifiers. Switch mode power supply (SMPS) provides high efficiency and low weight along with reduced physical size and lower heat dissipation. The DPA-300S is fully equipped with a protection circuit against short circuit, overload, power and DC output and offers less than 1% THD, total harmonic distortion with an increased signal to noise ratio to 90 dB and a widened frequency response from 30 Hz - 18 kHz.

High definition sound is achieved by using a high impedance matching transformer and noise cancelling balanced audio input. The total harmonic distortion is reduced to less than 0.1% THD, with a high signal to noise S /N ratio of over 100dB with optimum broadband frequency response of 65 Hz - 20 kHz.

A 2 position Low Cut Filter at 65 Hz and 400 Hz helps to improve speech intelligibility and protects output from unwanted low frequencies.

Inter-M DPA-300S Features:

  • High power Class D amplifier
  • Switch Mode Power Supply
  • High efficiency, lightweight
  • Compact 2RU size
  • Status Out contact monitoring for EN-54 supervision
  • DC Back-up Power

Inter-M DPA-300S Specifications:

  • Rated Output Power: 300 Watts, Single Channel
  • Frequency Response (-3 dB): 30 Hz - 20 kHz
  • Output Voltage:
    • 100V: 33.3 ohms
    • 70V: 16.3 ohms
  • Input Sensitivity: 1V / 10 kohm Balanced
  • THD: Less than 1%
  • SNR: 95 dB
  • HPF / OFF: 65 Hz
  • HPF / ON: 400 Hz
  • Operating Temperature: -10°C to +40°C
  • Power Source: DC24V, AC220 - 240V, 50/60 Hz
  • Dimensions (WxHxD): 482mm x 132mm x 280mm
