Azden WDL-PRO PRO Series 2-Channel VHF Wireless Microphone System for DSLR

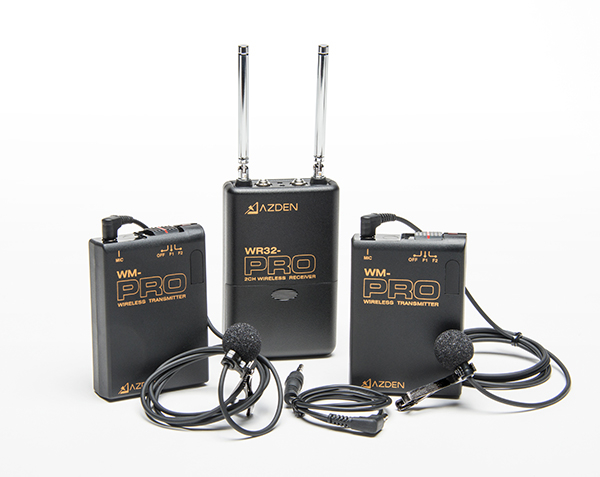

The Azden WDL-PRO VHF Wireless System pairs the WR32-PRO Dual-Chanel Receiver with two (2) WM-PRO belt pack transmitters and two (2) EX-503 lavalier microphones. This kit allows for a convenient wireless filming option for on-camera subjects, recording high-quality audio with the lavalier microphones, which hook directly to the subject’s shirt or collar. This set-up is ideal for outdoor videos, weddings or on-camera interviews.

Azden WDL-PRO Includes:

• WR32-PRO 2 Channel VHF Receiver
• Two (2) WM-PRO VHF Transmitters
• Two (2) EX-503 Omni Lavalier Microphones
• Two (2) Lapel Clips
• 3.5 mm Stereo Mini Output Cable
• Shoe Mount
• Hook & Loop Mounting Tape
• Ear Phone Monitor
• Manual

Azden WDL-PRO Features:

• 2 WM-PRO transmitters w/ lapel mics & 1 WR32-PRO receiver
• Removable Shoe Mount for WR32-PRO Receiver
• Use 2 microphones simultaneously
• Includes DSLR/Video Camera Stereo Output Cable
• Operates in the low-interference VHF band

Azden WDL-PRO Specifications:

• WM-PRO Transmitter:
  • Transmission Frequencies:
    • F1: 169.445 MHz
    • F2: 170.245 MHz
  • Mic Unit: Omnidirectional Electret Condenser
  • Battery: 9V x 1 (not included)
  • Power Consumption: 30mA
  • Battery Life: 8 to 10 Hours
  • Dimensions: 86 x 60 x 21.5 (mm)
  • Weight (w/ Battery): 3.5 oz (98 g)
• WR32-PRO Reciever:
  • Type: Double superheterodyne system
  • Reception Frequencies:
    • F1: 169.445 MHz
    • F2: 170.245 MHz
  • Reception Sensitivity: 2 uV at S/N 40 dB
  • Battery: 1.5V AA x2 (not included)
  • Power Consumption: 100 mA
  • Monitor Output Voltage: 0.7 V (load: 30 ohms, Modfreq: 1 kHz, Dev: +/- 7 kHz)
  • Microphone Output Voltage: 25 mV (load: 10 kohms, Modfreq: 1 kHz, Dev: +/- 7 kHz)
  • Impedance: 300 ohms
  • Dimensions (HxWxD): 2.5" x 3.9" x 1.1" (63mm x 98mm x 28.5mm)
  • Weight (w/ battery): 6 oz (171 g)
