Chief Manufacturing LBM3X1UP
Fusion 3x1 Portrait Micro-Adjustable Large Bolt-Down Freestanding Video Wall

OUR PART #:  LBM3X1UP

Chief Manufacturing's FUSION™ Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Learn More

Add to Cart to See Price

Write the first review.
Chief Manufacturing LBM3X1UP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

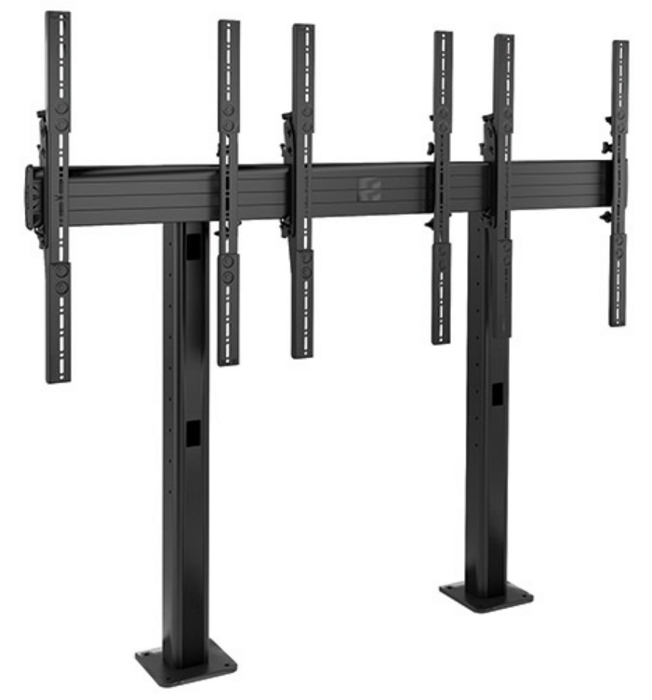

Chief Manufacturing's FUSION™ Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications. The screen array configuration is 3 screens wide x 1 screen high in portrait mode.

NOTE: To ensure this mount works with your equipment check with your sales representative.

Chief Manufacturing LBM3X1UP Features:

  • 3 x 1 portrait screen arrangement for 42 - 46"screens.  Larger displays possible with FCAX brackets, use MountFinder toconfirm compatibility
  • Easily align displays with independent height, plumband lateral shift adjustment
  • Bolt-down solution allows for a permanentsolution
  • Integrated cable management for a cleaninstallation
  • TAA Compliant

Chief Manufacturing LBM3X1UP Specifications:

  • Center of Display to Floor/Table Range: 17.38" (441mm) - 64.38" (1635 mm)
  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: Yes
  • Manual Height Adjustment: Micro-adjustment up to 0.75"(19 mm) per screen
  • Mounting Pattern Compatibility (Universal Versions):any width x 100 mm - 800 mm
  • Notes: TAA Compliant
  • Orientation: Portrait
  • Overall Dimensions (H x W x D): 80.6" x 68.0" x 9.61"(2047 x 1727 x 244 mm)
  • Plumb Adjustment: Micro-adjustment up to 0.75" (19mm)
  • Screen Array Configuration: 3 x1
  • Shipping Weight: 165.00 lbs
  • Solution Type:  Universal
  • Typical Screen Sizes: 42 - 46" (Larger displayspossible with FCAX brackets)
  • Weight Capacity: 125 lbs. (56.7 kg) per screen
