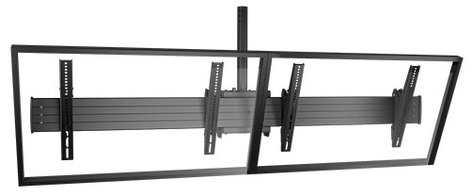

Chief LCM2X1U Large Ceiling Mounted 2x1 Menu Board

Chief's FUSION™ LCM2X1U ceiling mounted solution makes it possible to construct menu boards in prominent locations where walls aren't available. Combine multiple unites to easily create longer menu boards. Great for digital signage installations.

• Screen array configuration: screens wide x screens high.

Chief FUSION™ LCM2X1U Features:

• Single drop for fast installation
• Micro adjustable roll for perfect leveling +/- 3 degrees
• 360 degree swivel for optimal viewing angles
• Single horizontal extrusion keeps screens aligned
• Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
• Tool-free screen engagement
• Secure displays with optional pad-lock security
• Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65"

Chief FUSION™ LCM2X1U Specifications:

• Certifications: UL Listed
• Color: Black
• Mounting Pattern Compatibility (Universal Versions): Any width x 100 - 400 mm
• Post-Installation Leveling (Roll): + / - 3°
• Screen Array Configuration: 2 x 1
• Shipping Weight: 47.00 lbs.
• Solution Type: Universal
• Tilt: + 5° , - 20°
• Typical Screen Sizes: 40 - 55" (up to 65" with FCAX extension brackets)
• Weight Capacity: 125 lbs. (56.7 kg) per display

Note

NOTE: CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately. To ensure this mounting system works with your existing equipment, please contact your Sales Professional for more information.

NOTE: For more information, please refer to items under the "Documentation" tab and/or contact your Sales Professional for more information.
