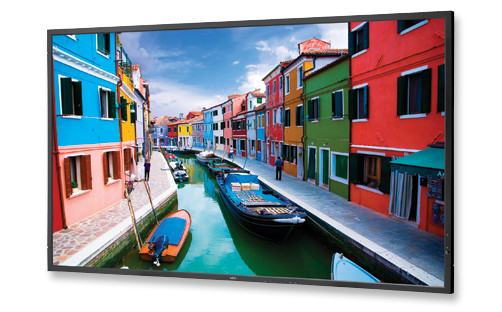

NEC Visual Systems V463
46” LED Backlit Commercial-Grade Display with Integrated Speakers

OUR PART #:  V463

The NEC 46" V463 high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage.
Learn More
NEC Visual Systems V463 1
NEC Visual Systems V463 2
NEC Visual Systems V463 3
NEC Visual Systems V463 4
Our Price: $1,099.00
List Price: $1,209.00
You save 9%!
Write the first review.
NEC Visual Systems V463
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The NEC 46" V463 high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage. The V463's commercial-grade panel is capable of displaying brilliant imagery and capturing the audience’s attention. This full HD model features built-in 10W speakers and an Open Pluggable Specification (OPS)-compliant expansion slot, which future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the computer, additional cabling is not required, thereby simplifying installations. With integrated temperature sensors and fans, this display is ideal in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and corporate boardrooms.


  • Power cord
  • 1.8m DVI-D cable
  • Wireless remote control
  • Batteries
  • CD-ROM (user manual)
  • Clamp
  • Screws

NEC V463 Features:

  • Advanced cooling system prevents the likeliness of image retention and improves color uniformity.
  • Picture-in-picture (PIP) allows fora second frame within the screen area. Picture-on-picture(POP) surrounds the standard frame with multiple frames.Side-by-side places two sources adjacent to one another.
  • Round-The-Clock Scheduler allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
  • Text Ticker creates a dedicated portion of the screen for applications such as news updates and emergency warnings.
  • Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry's first standardization option slotthat simplifies digital signage installations
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Full 1080p high-definition resolution
  • Commercial-grade LCD panel and components enable extended run time
  • Digital loop-through
  • TileMatrix™ allows you to create video walls up to 10x10
  • NaViSet Administrator 2 free software solution that greatly eases administration and management of larger display device installations

NEC V463 Specifications:


  • Panel Technology: A-MVA
  • Viewable Image Size: 46"
  • Native Resolution: 1920 x 1080
  • Pixel Pitch: 0.53mm
  • Backlight Type: LED Edge-lit
  • Pixels Per Inch: 47@ native resolution
  • Brightness (typical): 350cd/m2
  • Brightness (maximum): 500cd/m2
  • Contrast Ratio (typical): 4000:1
  • Viewing Angle: 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  • Refresh Rate: 60Hz
  • Aspect Ratio 16:9
  • Active Screen Area: 40.1"x 22.5" (1018.1 x 572.7 mm)
  • Orientation: Landscape/Portrait
  • Displayable Colors: More than 16.7 million

Synchronization Range

  • Horizontal (Analog/Digital): 31.5-91.1 kHz
  • Vertical: 50-85 Hz

Input Signal

  • Video: Analog RGB 0.7 Vp-p/75 Ohms
  • Sync:
    • Separate sync: TTL Level (Positive/Negative)
    • Composite sync: TTL Level (Positive/Negative)
    • Composite sync on green:  (0.3Vp-p negative 0.7Vp-p positive)


  • PC Signal Compatibility
  • Macintosh Compatibility
  • Input Terminals:
    • Digital: DisplayPort, HDMI, DVI-D
    • Analog: VGA 15-pin D-sub (shared S-Video, Video, Component), BNC Composite
    • Audio: Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
    • External Control: RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
  • Output Terminals:
    • Audio: Stereo Mini-Jack, External Speaker Jack (2)
    • Digital: DVI-D
    • External Control: RS-232C

Power Consumption (typical)

  • On: 76W
  • ECO Mode Standby: <2W


  • Bezel Width (Left/Right, Top/Bottom): 0.7"/0.7", 0.7"/0.7" (8.3mm/18.3mm, 18.3mm/18.3mm)
  • Dimensions:
    • with stand: 41.7" W x 25.6" H x 9.4" D (1058.2 x 649.8 x 240 mm)
    • without stand: 41.7" W x 24.1" H x 2.6" D (1058.2 x 612.8 x 65.1 mm)
    • Shipping: 49.6" W x 31" H x 8.9" D (1260 x 788 x 225 mm)
  • Weight:
    • with stand: 44.5 lbs. (20.2 kg)
    • without stand: 41.7 lbs. (18.9 kg)
    • Shipping: 52.7 lbs. (23.9 kg)

VESA Hole Configuration

  • 300 x 300mm (4-hole)

Environmental Conditions

  • Operating Temperature:  41-104°F (5-40°C)
  • Operating Humidity:  20-80%
  • Operating Altitude:  9843 ft. (3000m)
  • Storage Temperature:  -4-140°F (-20-60°C)
  • Storage Humidity:  10-90%
  • Storage Altitude:  40,000 ft. (12,192m)

Limited Warranty (parts & labor, including backlight)

  • 3 years

Additional Features

  • Advanced thermal capabilities
  • Advanced cooling system
  • TileMatrix (10x10)
  • TileComp
  • Separate group/Monitor ID function
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Carbon footprint meter
  • Plug and Play (DDC/CI, DDC2B)
  • Scheduler (w/ real-time clock)
  • Screen saver function
  • POP
  • Side-by-Side
  • Kensington lock
  • Touch- and protective screen-ready
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in speakers
  • OPS-Compliant slot

NOTE: All features/specifications subject to change without notice.
