TOA PC-580RVU
Pack of (10) 8" Plenum Rated Ceiling Speakers with 25V/70V Transformer and Center-Grille Volume Adjustment

OUR PART #  PC580RVU-AM

Our Price: $38.90
List Price: $48.14
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TOA PC-580RVU is an 8" ceiling speaker with a 25V/70V transformer and center-grille volume adjustment potentiometer that is designed to fill the need for a high-performance and low-cost ceiling speaker for paging and notification applications, especially where retrofit of speakers in large facilities dictat that common speaker template is used, eliminating the need for adapting existing ceiling cutouts. The PC-580RVU (along with the HY-BC580U back can - sold separately) meet UL requirements used in emergency signaling and notification applications.

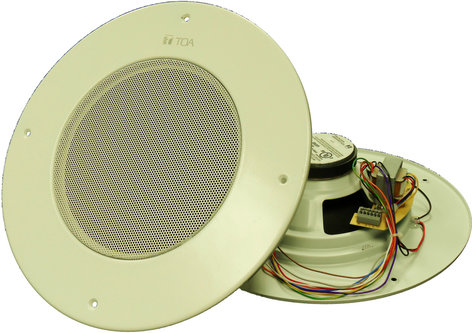

NOTE:  Image shown above is for illustrative purposes only; PC-580RVU model will come with a center-grille volume adjustment potentiometer. For more information on this and other products, contact your Sales Representative.

TOA PC-580RVU Features:

  • 8" in-ceiling speaker for high-quality paging applications
  • Low-cost design makes it ideal for projects requiring large quantities
  • 25 & 70V transformer taps up to 5W
  • Fits standard ceiling speaker template (PC-671R and others), perfect for retrofits
  • UL 1480 UUMW & UL 2043 plenum rated. Certified to work with emergency announcement systems.
  • Unique "monocoque" design provides better structural integrity
  • PC-580RVU version provides a center-grille volume adjustment potentiometer
  • Optional UL-rated HY-BC580U stackable back-can for use in ceiling plenums(sold separately)
  • Sold in quantities of 10

TOA PC-580RVU Specifications:

  • Rated Input:  10 Watts (speaker), 5 Watts(transformer, 70.7V line and 25V line)
  • Rated Impedance:
    • 70.7V Line:  20 kOhms (0.25W), 10 kOhms (0.5W), 5 kOhms (1W), 2.5 kOhms (2W), 1 kOhm (5W)
    • 25V Line:  2.5 kOhms (0.25W), 1.25 kOhms (0.5W), 625 Ohms (1W), 312.5 Ohms (2W), 125 Ohms (5W)
  • Sensitivity:  97 dB
  • Speaker Component:  8" (200mm) Dual cone type
  • Magnet Size:  Dia.80 K (3.15") x dia.32 (1.26") x 12 (0.47") mm
  • Magnet Weight:  10 oz (272 g)
  • Weight:  3.35 lbs (1.52 kg)
  • Flux Density:  11,900 gauss
  • Potentiometer Type:  Screwdriver adjust, Wire wound, resistance 50 Ohms
  • Finish:
    • Baffle:  Steel plate, white
    • Grille:  Surface-treated steel plate net, white
  • Dimensions:  12.6" dia. x 3.4" depth
  • Accessory:  Mounting screw (M 5 x 38mm) x4; Wire nut x2
  • Optional Accessories:
    • HY-BC580U Back Can (sold separately)
    • TBF-100 Tile Bridge (sold separately)
    • Q-HY-TB2 Tile Raile (sold separately)

TOA PC-580RVU
Pack of (10) 8" Plenum Rated Ceiling Speakers with 25V/70V Transformer and Center-Grille Volume Adjustment

OUR PART #  PC580RVU-AM

Product Information:

The TOA PC-580RVU is an 8" ceiling speaker with a 25V/70V transformer and center-grille volume adjustment potentiometer that is designed to fill the need for a high-performance and low-cost ceiling speaker for paging and notification applications, especially where retrofit of speakers in large facilities dictat that common speaker template is used, eliminating the need for adapting existing ceiling cutouts. The PC-580RVU (along with the HY-BC580U back can - sold separately) meet UL requirements used in emergency signaling and notification applications.

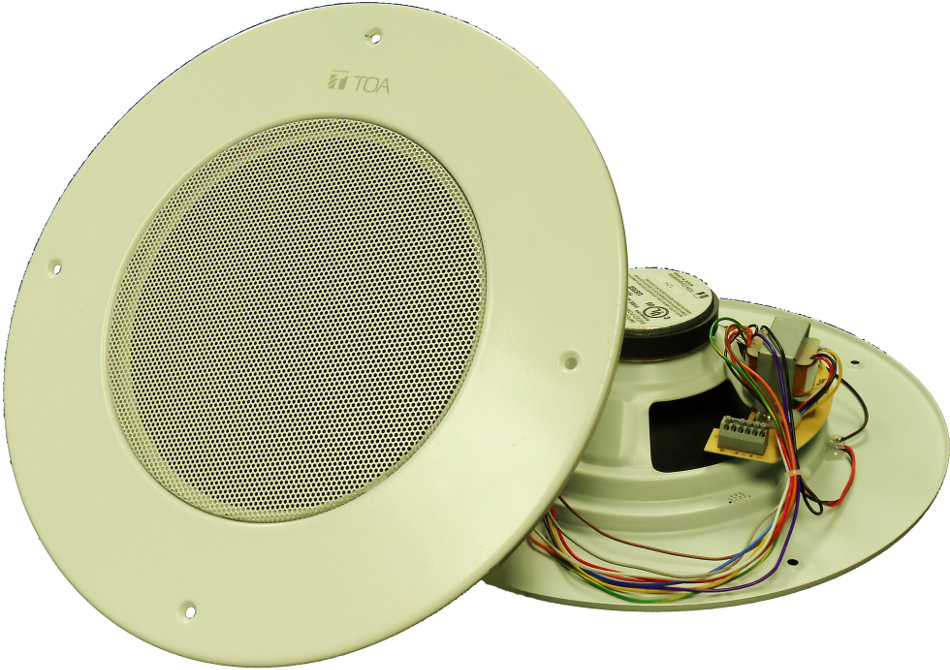

NOTE:  Image shown above is for illustrative purposes only; PC-580RVU model will come with a center-grille volume adjustment potentiometer. For more information on this and other products, contact your Sales Representative.

TOA PC-580RVU Features:

  • 8" in-ceiling speaker for high-quality paging applications
  • Low-cost design makes it ideal for projects requiring large quantities
  • 25 & 70V transformer taps up to 5W
  • Fits standard ceiling speaker template (PC-671R and others), perfect for retrofits
  • UL 1480 UUMW & UL 2043 plenum rated. Certified to work with emergency announcement systems.
  • Unique "monocoque" design provides better structural integrity
  • PC-580RVU version provides a center-grille volume adjustment potentiometer
  • Optional UL-rated HY-BC580U stackable back-can for use in ceiling plenums(sold separately)
  • Sold in quantities of 10

TOA PC-580RVU Specifications:

  • Rated Input:  10 Watts (speaker), 5 Watts(transformer, 70.7V line and 25V line)
  • Rated Impedance:
    • 70.7V Line:  20 kOhms (0.25W), 10 kOhms (0.5W), 5 kOhms (1W), 2.5 kOhms (2W), 1 kOhm (5W)
    • 25V Line:  2.5 kOhms (0.25W), 1.25 kOhms (0.5W), 625 Ohms (1W), 312.5 Ohms (2W), 125 Ohms (5W)
  • Sensitivity:  97 dB
  • Speaker Component:  8" (200mm) Dual cone type
  • Magnet Size:  Dia.80 K (3.15") x dia.32 (1.26") x 12 (0.47") mm
  • Magnet Weight:  10 oz (272 g)
  • Weight:  3.35 lbs (1.52 kg)
  • Flux Density:  11,900 gauss
  • Potentiometer Type:  Screwdriver adjust, Wire wound, resistance 50 Ohms
  • Finish:
    • Baffle:  Steel plate, white
    • Grille:  Surface-treated steel plate net, white
  • Dimensions:  12.6" dia. x 3.4" depth
  • Accessory:  Mounting screw (M 5 x 38mm) x4; Wire nut x2
  • Optional Accessories:
    • HY-BC580U Back Can (sold separately)
    • TBF-100 Tile Bridge (sold separately)
    • Q-HY-TB2 Tile Raile (sold separately)
