Grace Design m905 Analog
Reference Monitor Controller with Analog Inputs Only

OUR PART #:  M905-ANALOG

The m905 Analog is Grace Design's analog-only stereo monitor controller...
Learn More
Our Price: $2,370.00
List Price: $2,495.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Grace Design m905 Analog
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

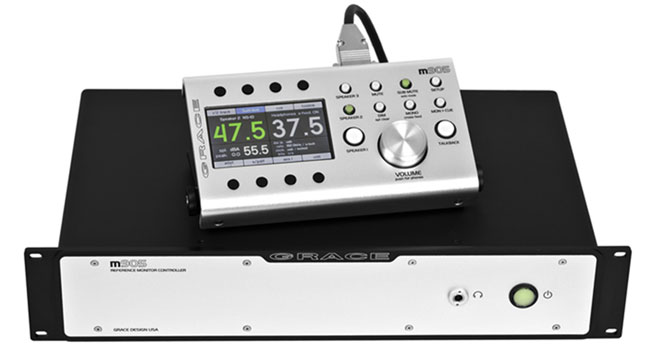

The m905 Analog is Grace Design's analog-only stereo monitor controller, engineered from the ground up to provide audio playback performance with a comprehensive and intuitive feature set. The m905 Analog model features the same configuration as the standard m905 with all the same great monitoring features, except no digital input and a second pair of balanced analog inputs. This system is offered for users who already have an investment in DACs, whether stand-alone or built into their interface.

The remote control unit is powerful, clean and ergonomic. It includes a headphone output, talkback microphone, and dedicated real time SPL meter. Controls are designed so that anyone unfamiliar with the system can operate it immediately and intuitively, then with a minimal time investment advanced setup and calibration features are accessed and programmed with ease.

The m905 Analog offers more monitoring management features than any current monitor controller. But its true essence is as the most sonically reliable and innate centerpiece available for your studio – homebase for your ears, eyes and hands.

Grace Design m905 Analog Features:

  • Analog inputs:
    • One (1) Unbalanced
    • Two (2) Balanced
    • CUE
    • Talkback mic
  • S-lock dual-stage Phase Lock Loop for ultra low jitter clock regeneration
  • Sleek, ergonomic hybrid RCU with hardware switches, large level encoder and graphical LCD
  • LCD display shows input, level, output, SPL and DAC status plus a powerful calibration menu
  • SPL meter sourced by built in RCU mic - includes level, peak, fast and slow modes, A & C weighting
  • Precision .5 dB step level control for speakers and headphones
  • Reference headphone amplifier circuitry, with outputs on both the RCU and mainframe
  • Built in crossfeed circuit for simulating loudspeaker listening with headphones
  • Dedicated mono, dim, mute, sub mute switches
  • Mono mode can be set to L+R summed, L only in both channels, or R only in both channels
  • 3 available stereo speaker outputs, two available as 2.1
  • Multi-mode SUB / METER out SUB out mode for stereo or multiple mono subwoofer outputs
  • METER out mode fed by selected input signal, level calibration from 0-100 or post speaker fader level
