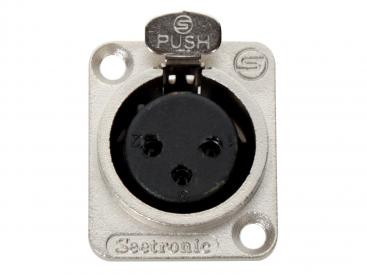

Elite Core K3F2C 3-pin XLRF Locking Panel Mount Connector

Seetronic female XLR panel mount connector. Designed to panel mount into a standard D-series punch-out. The standard knockout for a D-series product is approximately 0.840" or 21.3mm. 27/32" will also work.

Since the method of mounting a panel-mount D-series connector varies, the mounting screws or rivets are not included with this connector.

Screws used for chassis connectors depend on panel material and panel thickness. Elite Core Audio suggests the following:

• METAL PANEL - (with drilled hole that is not threaded) - Flat head thread forming screws, Pozidriv (recommended) or Phillips, M3 x length (drilled hole ~ 3.1 mm)
• METAL PANEL - (with M3 threaded mounting hole) Flat head metric machine screws, Pozidriv (recommended) or Phillips, M3 x length
• RIVETS - It is possible to use any aluminum 1/8'' or 3.2 mm 90° countersunk blind rivet. We suggest drilling a hole diameter of 3.3mm for the panel. It is possible to use pneumatic, electrical or hand riveting tools.
