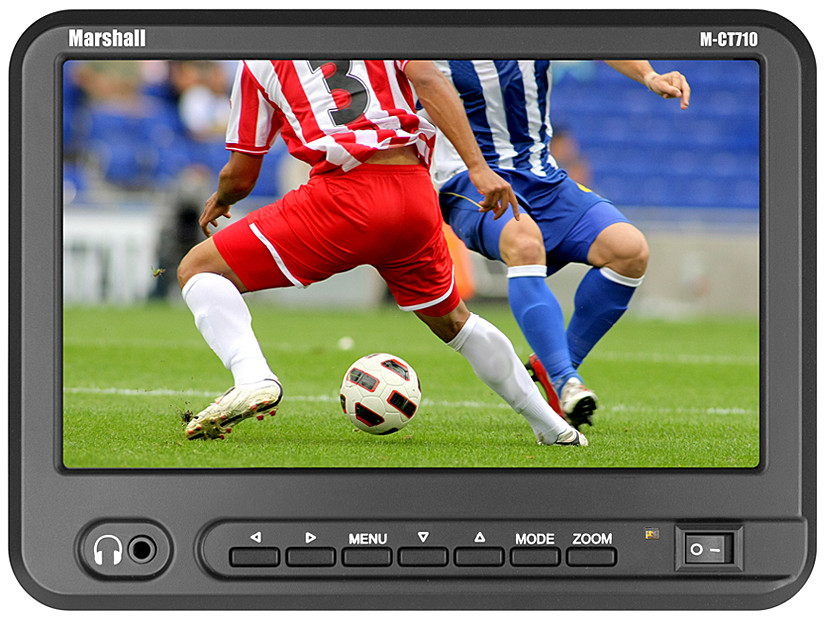

Marshall Electronics M-CT710-AA
7" High Resolution Portable Camera Top Field Monitor with AA Battery Holder

OUR PART #:  M-CT710-AA

Our Price: $338.75
List Price: $399.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics M-CT710-AA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall Electronics M-CT710-AA monitor kit provides a lightweight 7-inch 1024 x 600 LCD monitor with HDMI In/Out that is perfect for photographers and videographers looking for a simple, inexpensive monitoring solution. This unit offers a composite video input and audio input, along with HDMI In/Out connectivity. A variety of features include a 3.5mm stereo headphone jack, rear speaker for audio monitoring, Auto Aspect Ratio Detect, Zoom, Image Flip/Flop and full Color Adjustment, and Focus Aid (Peaking Filter). This particular unit employs the AA battery mount unit, though users also have the option to power this monitor using a standard DSLR battery (mount sold separately-contact your Sales Professional) for mobile on-the-go monitoring.

Peaking Filter
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have these colored highlights. This indicates that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has the colored highlights.
The original version of the peaking filter removed the color from the image leaving a black and white picture with Red highlights. This new version not only keeps the original color but adds a choice of four colors, Red, Green, Yellow and Pink to choose from for the highlights as well as adjustable sensitivity for even finer control of focus.
Please Note: This feature is most effective when the subject is properly exposed and contains enough contrast to be processed.

For more information, please refer to items under the "Documentation" tab.

Marshall Electronics M-CT710 Features:

  • 7-inch 1024 x 600 Native Resolution LCD display
  • Attaches directly to DSLR or HD video cameras
  • HDMI Pass-Through
  • Peaking Filter
  • A must-have tool for photographers and videographers
  • Focus clearly on shots and take the guesswork out of framing
  • Converts tiny built-in camera screen to easy-to-view display
  • Shoot hard-to-reach places without ladders, stools, or hazardous climbing

Marshall Electronics M-CT710 Specifications:

  • Screen Size:  7” TFT LCD
  • Resolution:  1024 x 600 (Native), up to 1920 (H) x 1440 (V)
  • Video Input:  HDMI, Composite, Audio (AV)
  • Video Output:  HDMI Audio Output 2.5W Speaker, 3.5mm Stereo Jack
  • Speaker:  Yes
  • Aspect Ratio:  16:9
  • Brightness:  350 cd/m²
  • Contrast:  500:1
  • Viewing Angles (CR>=10):  75° / 75° (L/R),70° / 70° (U/D)
  • Power Consumption:  <=8W Input Power 7V-16V
  • Dimensions (WxHxD):  7.25" x 5.75" x 1.125"
  • Weight:  12 oz. / 340g
  • Battery Mounts Available:
    • AA (included)
    • DSLR (sold separately-contact your Sales Professional for more information)
    • Camcorder (sold separately-contact your Sales Professional for more information)
  • Other Features:
    • Peaking (Focus Assist)
    • Center Screen Marker
    • Screen Marker: - 80%, 85%, 90%, 93% , 96%
    • Field Check: -R, G, B, Gray, Normal
    • Zoom
  • Warranty:  2 years, with registration
  • Included Accessories:
    • Standard Mini HDMI to HDMI cable
    • HDMI to HDMI cable
    • AC/DC power supply
    • Power Supply
    • Car Charger
    • Sunhood
    • Hot shoe mount
    • User manual

All features/specifications subject to change without notice.
For more information, please refer to items under the "Documentation" tab.
