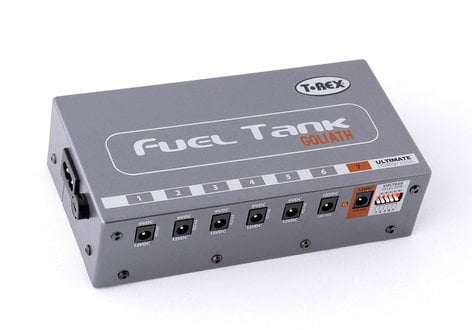

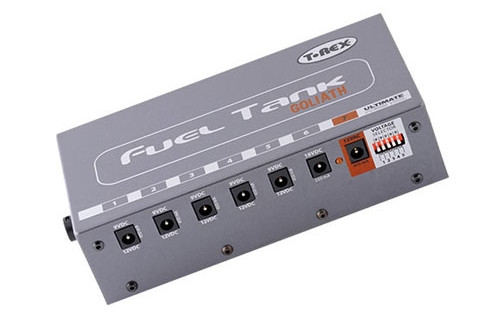

T-Rex Fuel Tank Goliath
Multi-Voltage Power Supply

OUR PART #  FUELTANK-GOLIATH

Our Price: $299.00
List Price: $399.00
You save 25%! (Low Price Guarantee)
In Stock

With 7 isolated outlets and the ability to handle 9, 12 and 18 volt DC pedals plus a 12 volt AC box, Goliath will power almost every pedal you own – and then some. Each of Goliath’s standard outlets delivers a mammoth 450 mA of 9 or12-volt power – which is enough to keep even the most demanding T-Rex pedals pumping out the tone. And on top of that, you get an 18 volt DC outlet (250mA) and a 12 volt AC outlet, that also delivers 450 mA of ferocious T-Rex power. That adds up to nearly 3000 mA of simultaneous power!

T-Rex Effects Fuel Tank Goliath Includes:

  • All the cables you need:
    • 1 x Mains power cable
    • 1 x Black Link DC cable with five 2,1mm – 2,1mm connectors
    • 1 x Red 50cm AC cable with 2,1mm – 2,5mm connectors for use on the 12V AC outlet.
    • 1 x Blue 50cm AC cable with 2,5mm – 2,5mm connectors for use on the 12V AC outlet.
    • 1 x black 50cm DC cable with 2,1mm connector – 3,5mm mini-jack connector
    • 1 x Orange 10cm Polarity inverter cable with 2,1mm connector – 2,1mm female connector.
    • 1 x Green Current doubler cable. 2 x 2,1mm connectors – 2,1mm connector
    • 2 x Black 20cm DC cables with 2,1mm – 2,1mm connector.
    • 4 x Black 50cm DC cables with 2,1mm – 2,1mm connector.
    • 2 x Black 75cm DC cables with 2,1mm – 2,1mm connector.

T-Rex Effects Fuel Tank Goliath Features:

  • 5 isolated 9/12 volt DC outlets (450 mA each)
  • 1 isolated 12 volt AC outlets (450 mA)
  • 1 isolated 18 volt DC outlet (250 mA)
  • Voltage selector - 115/230 volts
  • The fuse is external for easy replacement
  • Pedal board mounting bracket included
  • Including all the cables you need
  • Rugged, attractive design

T-Rex Effects Fuel Tank Goliath Specifications:

  • Dimensions (W x H x D): 180x92x48 mm / 7,1x3,6x1,9 inch
  • Weight (excl. packaging): 1,4 kg/ 49,4 oz
  • Power supply: Switchable 115V or 230V mains
  • Fuse: T315mA / 250V
  • Connections:
    • 5 x 9 or 12VDC 450mA
    • 1 x 18VDC 250mA
    • 1 x 12VAC 450mA
