Rolls DA134
4-Channel Audio Distribution Amplifier with RCA Connectors


Our Price: $98.00
List Price: $130.00
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

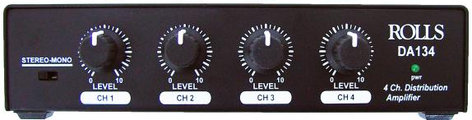

The Rolls DA134 is a four channel RCA distribution amplifier with RCA and 1/8” inputs that can be switched from mono or stereo. The DA134 Distribution Amplifier will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to drive line level signals. The DA134 is the perfect distribution amp anywhere high quality sound distribution is required.

Rolls DA134 Features:

  • Expands the output of a stereo device to multiple outputs
  • Can raise the output level to true line level for any output
  • Stereo 4 channel distribution amplifier
  • Front panel volume controls
  • Mono or Stereo operation
  • DC low end frequency for audiophile frequency response
  • Small compact design
  • Accepts inputs directly from iPad / iPod or laptop
  • Included Rolls PS27s power supply.
  • Stereo pass thru:  For connection to another DA134

Rolls DA134 Specifications:

  • Input Impedance:  10 kOhms
  • Max Input Level:  +12 dBV
  • Output Impedance:  470 Ohms
  • Max Output Level:  +12 dB
  • Max Gain:  20 dB
  • S/N Ratio:  > 90 dB
  • Cross Talk:  -70 dB (stereo)
  • Frequency Response:  DC - 60 kHz, +/- 1 dB
  • THD:  < 0.008%
  • Power:  15 VDC
  • Size:  6.5” x 3.5” x 1.5”
  • Weight:  1 lbs. 3 oz.
