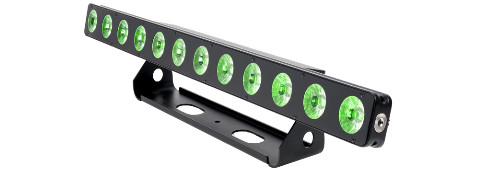

Elation SIXBAR 1000 12x 12W RGBAW+UV LED Batten Fixture

OUR PART #: SIX-BAR-1000 MFR #: SIX086

Copied to clipboard

From Elation Lighting, SIXBAR 1000™ is a bar fixture with twelve individually controllable 12 Watt 6-IN-1 RGBAW+UV LEDs. ...Read more

Elation SIXBAR 1000 12x 12W RGBAW+UV LED Batten Fixture Image 1
Elation SIXBAR 1000 12x 12W RGBAW+UV LED Batten Fixture Image 2
Elation SIXBAR 1000 12x 12W RGBAW+UV LED Batten Fixture Image 3
YFEJOqcAu00
1 Video
Elation SIXBAR 1000 12x 12W RGBAW+UV LED Batten Fixture
Our Price: $756.00
List Price: $945.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

From Elation Lighting, SIXBAR 1000™ is a bar fixture with twelve individually controllable 12 Watt 6-IN-1 RGBAW+UV LEDs. With a 30° beam angle, variable dimming curve modes, strobe and chase effects, you can enjoy clean, flicker-free operation. Connect via ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, while controlling via LCD menu display with 4 button control panel. Designed with integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, SIXBAR 1000™ provides illumination at a maximum power consumption of 145 Watts.

Includes

  • SIXBAR 1000 fixture
  • powerCON Cable
  • Frost Filter
  • Glare Shield

Features

  • 12x 12W 6-in-1 RGBAW+UV LEDs
  • Individual Control of Each LED
  • Variable Dimming Curves
  • Strobe and Zone Chase Effects
  • Integrated Dual Rigging Brackets
  • Multiple Unit Power Linking
  • Rugged Die-Cast Aluminum Exterior
  • Flicker-free operation for TV and FILM

Specifications

  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 Hour Average LED Life
  • Photometric Data:
    • 8,500 LUX 790 FC @3.3’ (1m) (30° Full ON)
    • 3,660 LUX 340 FC @6.6’ (2m) (30° Full ON)
    • 2,040 LUX 190 FC @9.8’ (3m) (30° Full ON)
    • 1,290 LUX 120 FC @13.1’ (4m) (30° Full ON)
    • 878 LUX 82 FC @16.4’ (5m) (30° Full ON)
  • Effects:
    • Strobe and Chase Effects
    • Individual LED Control
    • Variable and Selectable Dimming Curves
  • Control/Connections
    • 8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
    • 4 Button Control Panel and LCD Menu Display
    • ArtNet + KlingNET Protocol Support
    • RDM (Remote Device Management)
    • (2) etherCON Ports
    • 3pin and 5pin DMX In/Out
    • powerCON Power In/Out
  • Electrical/Thermal:
    • AC 110-240V - 50/60Hz
    • 145W Max Power Consumption
    • Power Linking: 6pcs @110V / 15pcs @240V
    • 5°F to 113°F (-15°C to 45°C)
    • UV Wavelength: 395nm
  • Approvals/Ratings: CE | cETLus | IP20
  • Dimensions: 35.4” x: 8.1” x 6.1"
  • Weight: 16.0 lbs.
