Elation SixBar 500 6x 12W RGBAWPlusUV LED Batten Fixture

OUR PART #: SIX-BAR-500 MFR #: SIX074

Copied to clipboard

From Elation Lighting, SIXBAR 500™ is low-power consumption bar fixture with six individually controllable 12 Watt 6-IN-1 RGBAW+UV LEDs. ...Read more

Elation SixBar 500 6x 12W RGBAWPlusUV LED Batten Fixture Image 1
Elation SixBar 500 6x 12W RGBAWPlusUV LED Batten Fixture Image 2
Elation SixBar 500 6x 12W RGBAWPlusUV LED Batten Fixture Image 3
Elation SixBar 500 6x 12W RGBAWPlusUV LED Batten Fixture Image 4
Elation SixBar 500 6x 12W RGBAWPlusUV LED Batten Fixture
Our Price: $532.00
List Price: $665.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

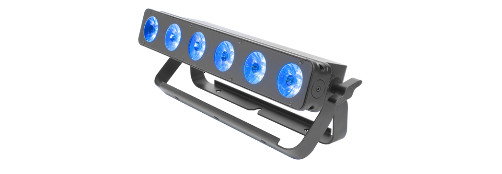

From Elation Lighting, SIXBAR 500™ is low-power consumption bar fixture with six individually controllable 12 Watt 6-IN-1 RGBAW+UV LEDs. With a 30° beam angle, variable dimming curve modes, and strobe and chase effects, you can enjoy clean, flicker-free operation from a simple fixture. Control via ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, while controlling via lighting console or LCD menu display with 4 button control panel. Designed with integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, SIXBAR 500™ provides great illumination at a max power consumption of 93 Watts.

Includes

  • powerCON Cable
  • Frost Filter
  • Glare Shield

Features

  • 6 x 12W 6-in-1 RGBAW+UV LEDs
  • Individual Control of Each LED
  • Variable Dimming Curves
  • Strobe and Zone Chase Effects
  • Integrated Dual Rigging Brackets
  • Multiple Unit Power Linking
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM

Specifications

  • (6) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 Hour Average LED Life*
  • Photometric Data:
    • 6,500 LUX 604 FC @3.3’ (1m) (30° Full ON)
    • 1,934 LUX 180 FC @6.6’ (2m) (30° Full ON)
    • 901 LUX 84 FC @9.8’ (3m) (30° Full ON)
    • 508 LUX 47 FC @13.1’ (4m) (30° Full ON)
    • 318 LUX 30 FC @16.4’ (5m) (30° Full ON)
  • Effects:
    • Strobe and Chase Effects
    • Individual LED Control
    • Variable and Selectable Dimming Curves
  • Control/Connections:
    • 8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43)
    • 4 Button Control Panel and LCD Menu Display
    • ArtNet + KlingNET Protocol Support
    • RDM (Remote Device Management)
    • (2) etherCON Ports
    • 3pin and 5pin DMX In/Out
    • powerCON Power In/Out
  • Electrical/Thermal:
    • AC 110-240V - 50/60Hz
    • 93W Max Power Consumption
    • Power Linking: 11pcs @110V / 25pcs @240V
    • 5°F to 113°F (-15°C to 45°C)
    • UV Wavelength: 395nm
  • Approvals/Ratings: CE | cETLus | IP20
  • Dimensions: 17.7" x 8.1" x 6.1"
  • Weight: 9.0 lbs.

Note:

All information and specifications subject to change without notice. Contact your Sales Pro for current information.
