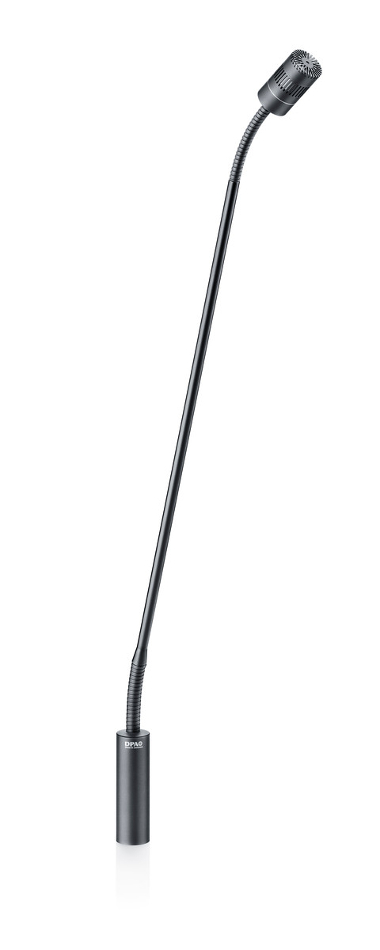

DPA Microphones 4018F45
d:dictate Supercardioid Podium Microphone with 18" Boom Length

OUR PART #:  4018F45

Due to its modular nature, the DPA Microphones MMC4018 supercardioid capsule can be combined with different lengths of podium booms – 6, 12 or 18 in (15, 30 or 45 cm).
Learn More
Our Price: $1,879.95
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones 4018F45
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Due to its modular nature, the DPA Microphones MMC4018 supercardioid capsule can be combined with different lengths of podium booms – 6, 12 or 18 in (15, 30 or 45 cm). If longer booms are needed for floor stands with visual elegance, DPA'S long booms at 75 or 120 cm (30 or 48 in) makes a high-quality stage voice mic together with DPA's dedicated accessories.

The highly directional supercardioid pickup pattern has a smooth and uniform off-axis frequency response. The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on the 4018F making it much more isolated without sudden frequency dependent peaks and dips.

For speech it’s all about the voice and no sound source is probably as recognizable as just that. No other microphone than the DPA 4018F has a more natural response to speak. No equalization is needed to remove microphone artifacts, with the 4018 the voice intelligibility is straight out of the mic.

DPA Microphones 4018F45 Specifications:

  • Directional Pattern:  Supercardioid
  • Principle of Operation:  Pressure gradient
  • Cartridge Type:  Pre-polarized condenser
  • Frequency Range:  20 Hz - 20 kHz
  • Frequency Range, +/- 2 dB, at 30 cm:  40 Hz - 18 kHz
  • Sensitivity, Nominal, +/- 2 dB at 1 kHz:  12 mV/Pa; -38.4 dB re. 1 V/Pa
  • Equivalent Noise Level, A-weighted:  Typ. 16 dB(A) re. 20 µPa (max. 19 dB)
  • S/N Ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 78 dB(A)
  • Total Harmonic Distortion (THD):  < 1 % up to 137 dB SPL peak
  • Dynamic Range:  Typ. 121 dB
  • Max. SPL, Peak Before Clipping:  142 dB
  • Output Impedance:  100 Ohms
  • Minimum Load Impedance:  2 kOhms
  • Cable Drive Capability:  100 m (328 ft)
  • Output Balance Principle:  Impedance balancing
  • Common Mode Rejection Ratio (CMRR):  > 40 dB
  • Power supply (for full specifications):  48 V Phantom power (+/- 4 V)
  • Current Consumption:  3.5 mA
  • Connector:  XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color:  Matte black
  • Microphone diameter:  0.75 in (19 mm)
  • Capsule diameter:  0.75 in (19 mm)
  • Microphone length:  18 in (45 cm)
  • Output voltage, RMS:  2.2 V
  • Polarity:  +V at pin 2 for positive sound pressure
  • Temperature Range:  -40 °F to 113 °F (-40 °C to 45 °C)
  • Relative Humidity (RH):  Up to 90%
