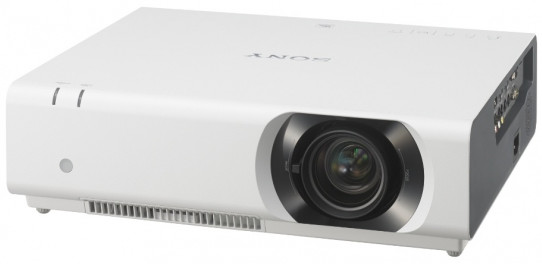

Sony VPL-CH370
4000 Lumens WUXGA Projector

OUR PART #  VPLCH370

Our Price: $1,999.00
List Price: $3,380.00
You save 41%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Sony VPL-CH370 delivers an outstanding brightness of 5000 lumens and ultra high-quality images with WUXGA resolution. Sony 3LCD BrightEra™ panel technology provides higher picture quality, substantially brighter images, higher efficiency, consistent color stability and longer durability. It also delivers installation flexibility, environment-friendly features, and a low total cost of ownership, in a stylish design that blends into any decor. The lens shift/zoom capability and the image correction features easily allow users to fit any image onto the screen, even from an offset projection angle.

Additionally, the projector is economically designed for optimum energy efficiency, thanks to its energy saving features and has all the features and functionality that you would expect from Sony, particularly in terms of installation, projection, usability, and maintenance.

Sony VPL-CH370 Features:

  • High resolution WUXGA image
  • The VPL-CH370 delivers an amazing resolution of WUXGA (1920 x 1200). Extremely clear and detailed high-quality images are projected, even on a large screen. The VPL-CH370 is the ultimate tool for projecting images in a range of applications requiring exceptional detail.
  • High image quality 3LCD BrightEra™ natural and vivid color images with high brightness of 5000 lumens
  • Thanks to the optical system projecting three basic colors constantly, the projector offers excellent light efficiency, which ensures colorful and bright images. Sony's BrightEra™ panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability. High color reproducibility is important especially when using colorful content, such as materials used in classrooms.
  • Fine lens shift: +/- 5%, Horizontal: +/- 4%
  • The VPL-CH370’s lens shift range adjustment means that the projector can be positioned picture-perfect and horizontally offset to avoid any minor ceiling obstacles.
  • 1.5:1 to 2.2:1 throw ratio
  • The VPL-CH370 offers a 1.5:1 to 2.2:1 throw ratio that can accommodate most large classrooms or large meeting room’s current replacement installation.
  • Blend-in design
  • The VPL-CH370 has a low-profile chassis, so it appears to blend into the ceiling or wall on which it is mounted.
  • Advanced energy-saving features
  • Advanced lamp technology enables robust energy-saving features. For example, greater brightness control in Auto Light Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Picture Mode automatically adjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimize energy consumption.

Sony VPL-CH370 Specifications:

Display system

  • Display system:  3 LCD system

Display device

  • Size of effective display area:  0.64” (16.3 mm) × 3, Aspect ratio: 16:10
  • Number of pixels  6,912,000 (1920 × 1200 × 3) pixels
  • Aspect ratio  16: 10

Projection lens

  • Zoom:  Manual (Ratio: Approx. x 1.45)
  • Focus:  Manual
  • Lens shift:  Manual (Vertical: +/- 5%, Horizontal: +/- 4%)
  • Throw Ratio:  1.5:1 to 2.2:1

Light source

  • Light source:  Ultra high pressure mercury lamp 280 W type
  • Recommended lamp replacement time:  2500 H / 3000 H / 3500 H (Lamp mode: High / Standard / Low)

Screen size

  • Screen size:  40” to 300” (1.02 m to 7.62 m)(measured diagonally)

Projection Output:

  • Light output (Mode: High / Standard / Low):  5000 lm / 3600 lm / 3100 lm
  • Color light output (Mode: High / Standard / Low):  5000 lm / 3600 lm / 3100 lm
  • Contrast ratio (full white / full black)  2500: 1

Displayable scanning frequency

  • Horizontal  19 kHz to 92 kHz
  • Vertical  48 Hz to 92 Hz

Display resolution

  • Computer signal input:  Maximum display resolution: 1920 × 1200 dots *1 / Panel display resolution: 1920 × 1200 dots
  • Video signal input:
    • 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
    • The following items are available for digital signal only: 1080/60p, 1080/50p, 1080/24p

Color system

  • Color system:  NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Keystone correction

  • Keystone correction:  Vertical: Max. +/- 30 degrees, Horizontal: Max. +/- 20 degrees

OSD language

  • OSD language:  24-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic , Turkish, Polish, Vietnamese, Farsi, Indonesian, Finnish, Hungarian, Greek)

INPUT/OUTPUT Connections (Computer/Video/Control)

  • INPUT A:  RGB / YPbPr input connector: Mini D-sub 15 pin female, Audio input connector: Stereo mini jack
  • INPUT B / INPUT C:  HDMI input connector: HDMI 19-pin, HDCP support
  • S-VIDEO IN:  S-video input connector: Mini DIN 4-pin
  • VIDEO IN:  Video input connector: Phono jack
  • OUTPUT:  Monitor output connector*2: Mini D-sub 15-pin (female), Audio output connector*2: Stereo mini jack
  • REMOTE:  D-sub 9-pin (male)
  • LAN:  RJ45, 10BASE-T/100BASE-TX
  • USB:  Type-A, Type-B
  • MICROPHONE IN:  Mini jack

Speaker

  • Speaker  12W × 1 (monaural)

Environment

  • Operating temperature (Operating humidity)  0°C to 40°C / 32°F to 104°F (20% to 80%; no condensation)
  • Storage temperature (Storage humidity)  -20°C to +60°C / -4°F to +140°F (20% to 80%; no condensation)

Power

  • Power requirements  AC 100 V to 240 V, 3.6 A to 1.6 A, 50/60 Hz
  • Power consumption:
    • AC 100 V to 120 V (Lamp mode: High / Standard / Low)  388 W / 315 W / 279 W
    • AC 220 V to 240 V (Lamp mode: High / Standard / Low)  367 W / 299 W / 266 W
    • Power Consumption (Standby Mode) - AC 100 V to 120 V  0.3W (when “Standby mode” is set to “Low”)
    • Power Consumption (Standby Mode) - AC 220 V to 240 V  0.5W (when “Standby mode” is set to “Low”)
    • Power Consumption (Networked Standby Mode) - AC 100 V to 120 V:
      • 5.0 W (LAN)
      • 5.1W (optional WLAN module)
      • 5.3W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
    • Power Consumption (Networked Standby Mode) - AC 220 V to 240 V:
      • 5.2 W (LAN)
      • 5.3W (optional WLAN module)
      • 5.5W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
    • Standby Mode/Network Standby Mode Activated  after about 10 minutes
    • Wireless Network(s) On/Off Switch:
      • 1) Press the MENU button, then select[Connection/Power]
      • 2) [WLAN Settings]
      • 3) [WLAN Connection]
      • 4) Select On or Off

Heat dissipation

  • AC 100 V to 120 V:  1323 BTU
  • AC 220 V to 240 V:  1252 BTU

Physical

  • Outside dimensions (W × H × D):  Approx. 15 31/32 × 4 7/16 × 13 in  (406 × 113 × D 330.5 mm) (without protrusions)
  • Weight  Approx. 12 lbs. (5.7 kg)

What's Included:

  • RM-PJ8 Remote Commander (1)
  • Lithium battery: CR2025 (1)
  • AC Power Cord (1)
  • Lens cap (1)
  • Quick Reference Manual (1)
  • Operating Instructions (CD-ROM) (1)
  • Presentation Station for Network Presentation application (CDROM) (1)

NOTES:
*1 Available for VESA Reduced Blanking signal.
*2 From INPUT A.
