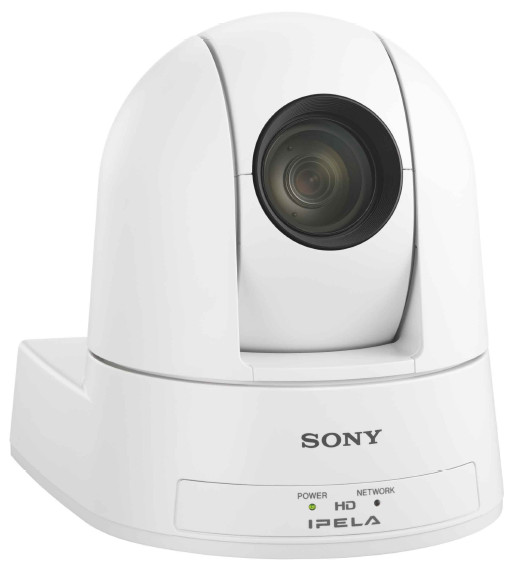

Sony SRG-300SE/W
1080-60P 3G-SDI and Live IP Streaming PTZ Camera in White

OUR PART #  SRG300SE/W

Our Price: $2,799.13
List Price: $3,849.00
You save 27%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Sony's popular and expanding SRG PTZ Camera series now includes the SRG-300SE/W 3G-SDI and Live IP Streaming camera. The SRG-300SE/W builds upon the SRG-300H's full HD (1080/60p) imaging, as well as pace-setting 30x optical zoom, and provides 3G-SDI interface for long distance single cable transmission of 1080/60p 4:2:2 Broadcast-quality baseband digital video. The SRG-300SE/W can simultaneously output 3G-SDI and live IP streaming content. It's 30x optical zoom and 12x digital zoom with a 65-degree viewing angle produces H.264 IP streaming video with selectable bit rates along with simultaneously outputting 1920 x 1080/60p video over a single BNC cable through 3G-SDI that can run approximately 70m or more, easing installation and adding more flexibility to customer's live production needs. Plus, it also comes with 2 audio inputs (LINE and MIC) which allow for audio embedding onto the IP stream. It features an expanded menu of pre-set options from 16 up to 256, with remote operation either via VISCA™ serial control or through a supported IP-based computer interface. Audiences at remote venues or in overflow rooms can monitor the event live as well as control pan/tilt/zoom functions of the camera over IP. This can also enhance the learning experience for interns at teaching hospitals, and brings sports viewers closer to the action. Designed primarily for small to mid-sized venues, this camera provides Sony's renowned high picture quality and reliability at an affordable price, and makes a great single-source PTZ camera.

Sony SRG-300SE/W Includes:

  • SRG-300SE/W Unit
  • AC Power Adaptor
  • AC Power Cable
  • Ceiling Bracket (2)
  • RS-422 Connection Plug
  • Wire Rope
  • Screw M3 x 8 (8)

Sony SRG-300SE/W Features:

  • 1/ 2.8” Exmor® CMOS Sensor - 1080/60p, 1080/60i ,720/60p
  • High 30x Optical Zoom (12x Digital Zoom)
  • Simultaneous 3G-SDI and IP H.264 Full HD streaming
  • 65° Horizontal Wide Field of View
  • View-DR® Wide Dynamic Range Technology - Ideal for extreme lighting conditions
  • XDNR® (eXellent Dynamic Noise Reduction) Technology helps to provide clear images in low-light conditions
  • Network Port 10BASE-T /100BASE-TX (RJ-45)
  • Up to 256 camera preset positions
  • Web Viewing Function for remote camera control – up to 20 clients
  • Control via RS-422
  • Desktop or Ceiling mountable with Image E:Flip Function
  • Pan/Tilt Angle: Pan +/- 170° Tilt: +/-90° / 20°

Sony SRG-300SE/W Specifications:

Camera

  • Image Device:  1/2.8 Exmor CMOS
  • Effective Pixels:  Approx. 2.1 Megapixels
  • Lens:  30x Optical Zoom / 12x Digital Zoom
  • Minimum Object Distance:  10mm (wide) - 1200 mm (tele)
  • Auto Exposure:  Auto, Manual, Priority, AE (shutter, iris), Exposure Compensation, Blight
  • Shutter Speed:
    • 1/1 to 1/10000 sec (59.94 Hz system)
    • 1/1 to 1/10000 sec (50 Hz system)
  • Gain:  Auto/Manual (0 to +43 db)
  • White Balance:  Auto, Indoor, Outdoor, One-push auto, ATW, Manual
  • Pan Angle/Speed:  Pan 100°/sec
  • Tilt Angle/Speed:  Tilt 90°/sec
  • Horizontal Viewing Angle:  63.7° (wide)
  • Preset Positions:  256 - Position numbers 17 to 256 are stored as PTZF only
  • 3.5mm and RCA Mono audio inputs (embedded audio in IP stream)
  • Onboard audio control (including Simplified Equalizer)

Interface

  • Camera Control Interface:
    • RS-422 Serial (VISCA)
    • RJ-45 (CGI)

Video Output

  • Horizontal Resolution:  1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, (H.264, JPEG)
  • Minimum Illumination:
    • 1.4 lux (F1.6, 50 IRE, high sensitivity mode OFF, 30 fps)
    • 2.8 lux (F1.6, 50 IRE, high sensitivity mode OFF, 60 fps)
    • 0.35 lux (F1.6, 50 IRE high sensitivity mode ON, 30 fps)
    • 0.7 lux (F1.6, 50 IRE, high sensitivity mode ON, 60 fps)
  • S/N Ratio:  50 dB
  • Video Output:
    • 3G-SDI HD Video Output
  • Signal System:
    • 1080/59.94 (A/B), 50p (A/B), 29.97p, 25p
    • 1080/59.94i, 50i
    • 720/59.94p, 50p, 29.97p, 25p

General

  • Physical:
    • Housing Color: White
    • Dimensions:  6-1/4" W x 6-1/2" H x 6-1/2" D (157mm x 164mm x 163mm)
    • Weight:  Approx. 3 lbs, 1.4 oz (1.4kg)
  • Power:
    • Power Requirements:  DC 12V (DC 10.8 to 13.2V)
    • Power Consumption:  16.8W
  • Environment:
    • Operating Temperature:  32° F to 104° F (0° C to 40° C)
    • Storage Temperature:  -4° F to 140° F (-20° C to +60° C)

Note: All specifications subject to change without notice.
