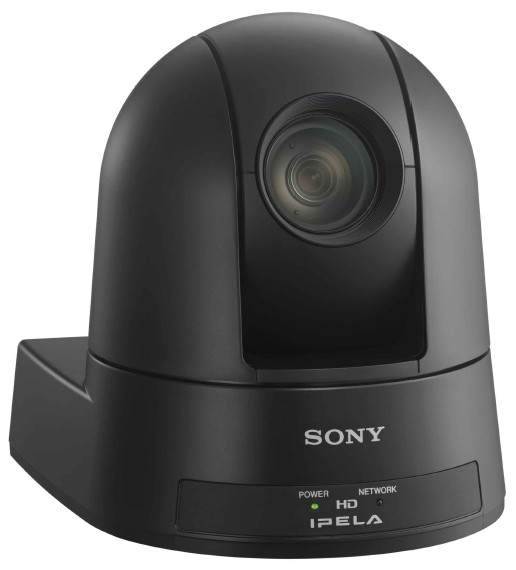

Sony SRG-300SE
1080-60P 3G-SDI and Live IP Streaming PTZ Camera in Black


Our Price: $2,799.12
List Price: $3,849.00
You save 27%!
In Stock

Recommended Accessories

Sony's expanding popular SRG PTZ Camera line up now includes the SRG-300SE 3G-SDI and Live IP Streaming camera. The SRG-300SE builds on the SRG-300H's full HD (1080/60p) imaging, pace-setting 30x optical zoom and offers 3G-SDI interface for long distance, single cable transmission of 1080/60p 4:2:2 Broadcast-quality baseband digital video. The SRG-300SE can simultaneously output 3G-SDI and live IP streaming content, and features 30x optical zoom plus 12x digital zoom with a 65-degree viewing angle to produce H.264 IP video streaming with selectable bit rates, as well as simultaneously output 1920 x 1080/60p video over a single BNC cable through 3G-SDI that you can run approximately 70m or more, easing installation and adding more flexibility to your live production needs, plus it also has 2 audio inputs (LINE and MIC) which allow for audio embedding onto the IP stream. An expanded menu of pre-set options from 16 up to 256 is included, and it can be operated either by VISCA™ serial control or through an IP-based computer interface capable of remote operation. Overflow room or remote venue audiences can monitor the event live and control pan/tilt/zoom functions of the camera over IP. This also enhances learning experiences for interns at teaching hospitals and lets sports viewers feel more like they are at the stadium. Designed primarily for small to mid-sized venues, it's great as a single-source PTZ camera, delivering Sony's renowned high picture quality and dependability, all at an affordable price.

Sony SRG-300SE Includes:

  • SRG-300SE unit
  • AC Power Adaptor
  • AC power cable
  • Ceiling Bracket (2)
  • RS-422 Connection plug
  • Wire rope
  • Screw M3 x 8 (8)

Sony SRG-300SE Features:

  • 1/2.8" Exmor® CMOS Sensor - 1080/60p, 1080/60i ,720/60p
  • High 30x Optical Zoom (12x Digital Zoom)
  • Simultaneous 3G-SDI and IP H.264 Full HD streaming
  • 65° Horizontal Wide Field of View
  • View-DR® Wide Dynamic Range Technology - Ideal for extreme lighting conditions
  • XDNR® (eXellent Dynamic Noise Reduction) Technology helps to provide clear images in low-light conditions
  • Network Port 10BASE-T /100BASE-TX (RJ-45)
  • Up to 256 camera preset positions
  • Web Viewing Function for remote camera control – up to 20 clients
  • Control via RS-422
  • Desktop or Ceiling mountable with Image E:Flip Function
  • Pan/Tilt Angle: Pan +/- 170° Tilt: +/-90° / 20°
  • 3.5mm and RCA Mono audio inputs (embedded audio in IP stream)
  • Onboard audio control (including Simplified Equalizer)

Sony SRG-300SE Camera Specifications:


  • Image Device:  1/2.8 Exmor CMOS
  • Effective Pixels: Approx. 2.1 Megapixels
  • Lens: 30x Optical Zoom/12x Digital Zoom
  • Minimum Object Distance: 10mm (wide) - 1200 mm (tele)
  • Auto Exposure: Auto, Manual, Priority, AE (shutter, iris), Exposure Compensation, Blight
  • Shutter Speed:
    • 1/1 to 1/10000 sec (59.94 Hz system)
    • 1/1 to 1/10000 sec (50 Hz system)
  • Gain: Auto/Manual (0 to +43 db)
  • White Balance: Auto, Indoor, Outdoor, One-push auto, ATW, Manual
  • Pan Angle/Speed: Pan 100°/sec
  • Tilt Angle/Speed: Tilt 90°/sec
  • Horizontal Viewing Angle: 63.7° (wide)
  • Preset Positions: 256 - Position numbers 17 to 256 are stored as PTZF only


  • Camera Control Interface:
    • RS-422 Serial (VISCA)
    • RJ-45 (CGI)

Video Output

  • Horizontal Resolution: 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, (H.264, JPEG)
  • Minimum Illumination:
    • 1.4 lux (F1.6, 50 IRE, high sensitivity mode OFF, 30 fps)
    • 2.8 lux (F1.6, 50 IRE, high sensitivity mode OFF, 60 fps)
    • 0.35 lux (F1.6, 50 IRE high sensitivity mode ON, 30 fps)
    • 0.7 lux (F1.6, 50 IRE, high sensitivity mode ON, 60 fps)
  • S/N Ratio: 50 dB
  • Video Output: 3G-SDI HD Video Output
  • Signal System:
    • 1080/59.94 (A/B), 50p (A/B), 29.97p, 25p
    • 1080/59.94i, 50i
    • 720/59.94p, 50p, 29.97p, 25p


  • Physical:
    • Housing Color: Black
    • Dimensions: 6-1/4" W x 6-1/2" H x 6-1/2" D (157mm x 164mm x 163mm)
    • Weight: Approx. 3 lbs, 1.4 oz (1.4 kg)
  • Power:
    • Power Requirements: DC 12V (DC 10.8 to 13.2V)
    • Power Consumption: 16.8W
  • Environment:
    • Operating Temperature: 32° F to 104° F (0°C to 40° C)
    • Storage Temperature: -4° F to 140° F (-20° C to +60°C)

Note: All specifications are subject to change without notice.
