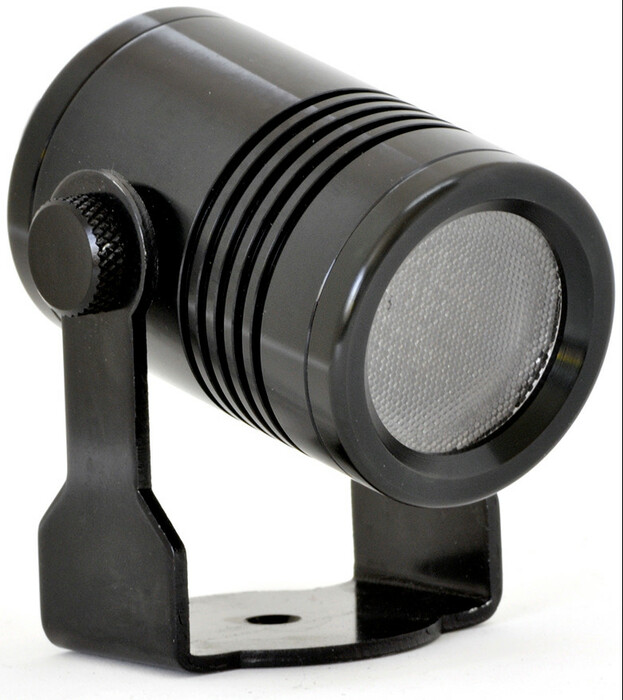

Gantom Lighting GT22
DMX Flood 4W Micro RGBW DMX-Controllable Fixture

OUR PART #:  GT22

The Gantom GT22 RGBW DMX Flood is a 4W color controllable LED floodlight for professional applications.
Learn More
Sale Price: $190.00
List Price: $200.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Gantom Lighting GT22
Qty:
In Stock

Similar Products

The Gantom GT22 RGBW DMX Flood is a 4W color controllable LED floodlight for professional applications. Featuring a non-linear dimming curve, the Gantom DMX Flood can be dimmed with high precision even at the lowest intensity levels. Homogeneous optics smoothly blend the colors of the internal quad chip LED to produce a clean projected field. Objects blocking this light source will cast razor sharp shadows without color separation. High frequency hybrid modulation allows the Gantom DMX Flood to be used in video applications with minimal on-camera flickering. This fixture can even be battery powered for portable operation, perfect for fill lighting in hard to reach locations. The Gantom DMX Flood is configured using their DMX Programmer iOS app, available free from the Apple App Store.

Applications:

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Theater and stage accent lighting
  • Mobile displays
  • Floral centerpieces
  • Retail spaces
  • Architectural accent lighting
  • General purpose accent lighting
  • Props and animatronics
  • Special effects lighting
  • Temporary event lighting

Gantom GT22 RGBW DMX Flood Features:

  • Homogeneous wide beam optics
  • Also available in narrow beam angle configuration (see Gantom DMX Spot)
  • Non-linear dimming curve for smooth fading without visible "steps" in output intensity
  • 14-bit dimming compressed into single 8-bit channel gives precision control without using extra channels
  • Flicker-free for video applications
  • DMX address and colors stored in memory via DMX Programmer app
  • Less than 5W at full output
  • Integrated DMX receiver
  • Integrated quad channel constant current driver for consistent output
  • Indoor and outdoor use

Gantom GT22 RGBW DMX Flood Specifications:

  • Max wattage:  4.8W
  • Input Voltage:  9-15VDC (12VDC nominal)
  • Current Draw:  < 400mA @ 12VDC
  • Power Supply:  for use with class 2 transformer or battery
  • Beam Angle:  28 degrees
  • Field Angle:  66  degrees
  • Ingress Protection:  IP65
  • LED:  Cree XLamp MC-E
  • Certifications:  UL and CE
  • Power Connector:  2.1mm DC jack with screw terminal adapter
  • Signal Connector:  3.5mm (1/8") TRS jack with screw terminal adapter

NOTE: For more information, please refer to the data sheet found under the "Documentation" tab.
