Gantom Lighting PR15
Precision Z Cool White Micro Spot


Our Price: $61.75
List Price: $65.00
You save 5%!
Write the first review.
Gantom Lighting PR15
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

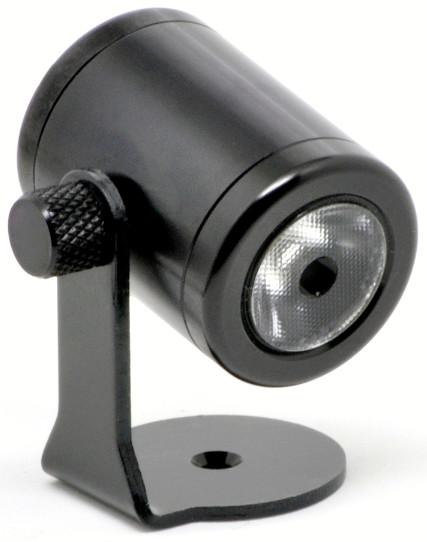

The Gantom Lighting PR15 Precision Z Spotlight Cool White-beam version produces a concentrated point-source light equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package. The fixture’s modular design allows it to be swapped with other fixtures without the hassle of cutting wires, allowing for fast design changes and reconfiguration. The industrial machined aluminum chassis gives the Precision Z an elegant form yet functions as a rugged shell and heat sink to protect the LED and core electronics even in outdoor and underwater applications. Internal driver circuitry ensures constant output over a wide range of input voltage and extends the fixture life beyond 50,000 hours.


  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Museums displays (wall mounted artwork and display cases)
  • Theater and stage accent lighting
  • Mobile displays
  • Retail spaces
  • Architectural accent lighting
  • Machinery

Gantom Lighting PR15 Features:

  • Perfect for space constrained applications
  • 1W LED with 95% energy savings compared to 20W halogen lamp
  • Low voltage and minimal heat for improved safety over incandescent sources
  • Internal constant current driver gives highly efficient and consistent output
  • PWM dimmable (10%-100%)
  • Easy installation and reconfiguration
  • Dual polarity input
  • Minimal maintenance required with over 50,000-hour lamp life
  • Indoor and outdoor use

Gantom Lighting PR15 Specifications:

  • Fixture Wattage: 1.5W
  • LED Wattage: 1W
  • Input Voltage: 9-15VDC (12VDC nominal)
  • Current Draw: 125mA @ 12VDC
  • Power Supply: for use with class 2 transformer or battery
  • Beam Color: Cool White
  • Beam Angle: 11°
  • Field Angle: 32°
  • Ingress Protection: IP68-3ft
  • Housing Material: Anodized aluminum
  • LED: Edison A
  • Certifications: UL and CE
  • Power Connector: 2.1mm DC jack with screw terminal adapter

NOTE:  For more information on the "Cool White"-beam characteristics, please refer to the Gantom Lighting Precision Z Datasheet found under the "Documentation"tab.
