McCauley Sound AC75
2-Way Passive Full-Range Installation Loudspeaker with 5.25" Driver in White

OUR PART #:  AC75W-MCCAULEY

The McCauley AC75 is a passive 2 way loudspeaker designed for permanent installations.
Learn More

Call for price! Not available online.

Similar Products

The McCauley AC75 is a passive 2 way loudspeaker designed for permanent installations. This low profile, high output, weather resistant speaker features a treated direct radiating 5.25” cone loudspeaker and a 1” direct radiating high frequency driver. The AC75 delivers reference monitor sound quality at high foreground levels and is designed for both horizontal and vertical installation. It is housed in a durable UV-resistant, paintable, all weather enclosure that is available in both black or white. The AC75 features an internal multi-tap transformer which allows 70V and 100V operation are direct 8 ohm bypass.

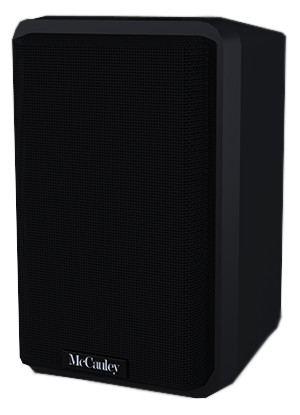

NOTE:  Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.

The AC75 features a tuned port Bass Reflex enclosure that has an improved low frequency response over a conventional enclosure. The integrated 70V/100V line matching transformer allows for parallel connection of multiple AC75 loudspeakers in distributed installations. The installer and system designer have a choice of 4 sensitivity settings (7.5W, 15W, 25W, and 8 ohm bypass) selected via a rotary switch located on the rear jack panel of the enclosure. These sensitivity or “tap” settings can also be used as a relative volume adjustment within the distributed system.

Included with the AC75 is a heavy gauge zinc plated and paint matched U-bracket for permanent installation. Threaded fasteners are available on the rear of the enclosure and can be used with optional ball-mount hardware.

One channel of discrete amplification and signal processing is required for this product. The preferred signal processors for the AC75 is the McCauley M Series family of loudspeaker controllers.

McCauley AC75 Features:

  • 70-Volt Transformer
  • U-Bracket Mounting System
  • Optimized Internal Crossover
  • Optimized for Intelligibility
  • Optional White Finish
  • Perforated Steel Grill

McCauley AC75 Specifications:

  • Class:  Full Range
  • Coverage:  90° x 90°
  • Freq. Response (-3dB):  85Hz - 18kHz
  • Low Freq. Response (-10dB):  75Hz
  • Power Handling - Full Range (Program):  125W
  • Max Peak SPL - Full Range:  113dB
  • Max Continuous SPL - Full Range:  107dB
  • Impedance - Full Range:  8 Ohms
  • Sensitivity - Full Range:  93dB
  • Critical Filter:  60Hz
  • Construction:
    • Material:  ABS Plastic
    • Finish:  Black Paint, White Paint
    • Grill Type: Fitted Perforated Steel
  • Product Dimensions:  7in. x 10.5in. x 6.5in.(177.8mm x 266.7mm x 165.1mm)
  • Net Weight:  7lbs (3.17kg)
