Gantom Lighting DB41
DarkBox RePlay DMX Recorder and Player

OUR PART #:  DB41

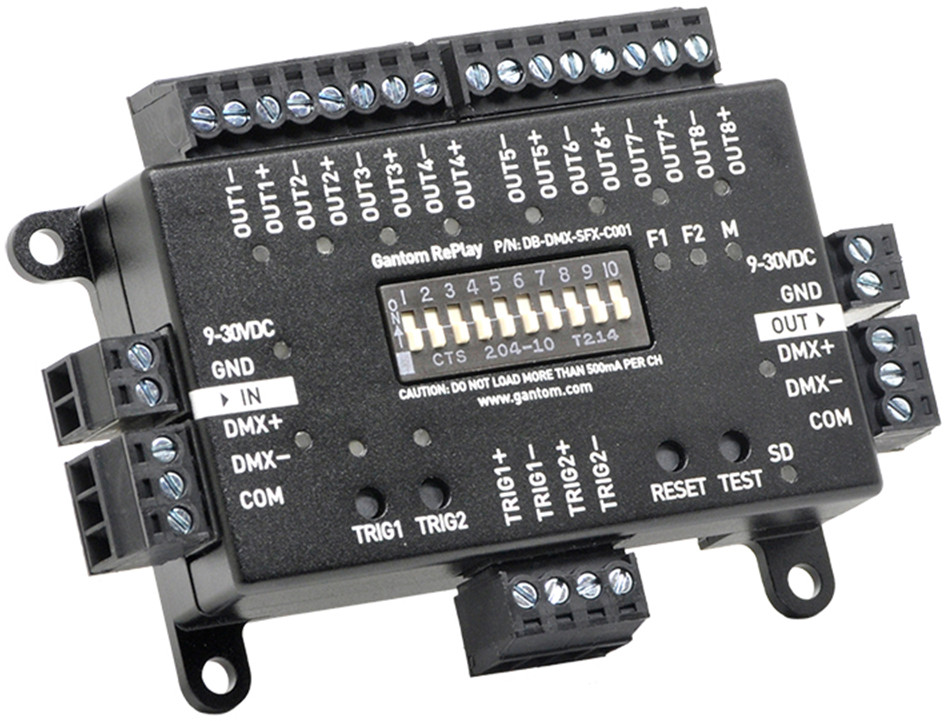

The Gantom DB41 DarkBox RePlay is a full-universe DMX recorder and player with a built in 8 channel constant voltage LED dimmer.
Learn More
Our Price: $380.00
List Price: $400.00
You save 5%!
Write the first review.
Gantom Lighting DB41
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Gantom DB41 DarkBox RePlay is a full-universe DMX recorder and player with a built in 8 channel constant voltage LED dimmer. The DarkBox RePlay allows for standalone playback of its own LEDs and any attached DMX slave devices from a recorded DMX sequence stored on its micro-SD card. This controller benefits the user by providing a compact device that can playback timeline based DMX events without the need for large show control devices after the initial recording. Triggered inputs allow the device to play from 2 distinct DMX stream files. Append and overwrite record modes allow the user to easily build sequences one after another or overwrite the existing files. DMX sequences stored on the micro-SD card can be copied and transferred for easy duplication of sequences for multiple devices. The DarkBox RePlay is perfect for automated shows, props, animations, or even entire live events.

Applications:

  • Props and animatronics
  • Full pre-recorded light show
  • Ride vehicles with interactive lights
  • Live stage performances
  • Trigger-based special effect sequences

Gantom DB41 DarkBox Replay Features:

  • 2 DMX sequences can be recorded onto micro-SD card and played back to any attached DMX slave devices
  • Tactile or electrical input triggers can activate DMX sequences
  • Configurable for loop or one-shot DMX playback
  • Built-in DMX controlled constant voltage 8 channel PWM dimmer (500mA per channel)
  • Multiple devices can be daisy chained for increased dimmer channel count (4A max through current)
  • Compact form factor allows device to be installed as a self-contained lighting solution
  • Fused power and DMX input and opto-isolated input triggers for added electrical protection

Gantom DB41 DarkBox RePlay Specifications:

  • Input:  9-30VDC
  • Power Rating:  Max 4A load (500mA per channel)
  • Output:
    • 8 channel PWM output (9-30V @ 500mA per channel)
    • DMX output
  • Dimming:  PWM
  • Dimensions:  3.6" x 2.4" x.7" (91 x 62 x 17 mm)
  • Connector Type:  Phoenix-type screw terminals
  • Exterior Finish:  Black power coat aluminum
  • IP Rating:  IP30
