Cables To Go 33045

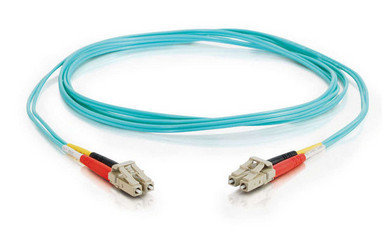

1m LC-LC 10Gb 50/125 OM3 Duplex Multimode PVC Fiber Optic Cable in Aqua

OUR PART #:  33045

This OM3 Duplex Multimode Fiber Optic Cable is ideal for connecting 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ tranceivers for 10 gigabit network connections.
Learn More
Our Price: $16.55
List Price: $25.99
You save 36%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cables To Go 33045
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This OM3 Duplex Multimode Fiber Optic Cable is ideal for connecting 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ tranceivers for 10 gigabit network connections. This cable provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 10 gigabit ethernet applications.

C2G 33045 Features:

  • Designed for 10Gbase-SR and LRM applications
  • Backward compatible with existing 50/125 equipment
  • Available in SC, ST and LC connectors
  • Available in lengths up to 10m

C2G 33045 Specifications:

  • Color :  Aqua
  • Warranty :  Lifetime
  • Weight :  0.070 LB
  • Length :  1.00 Meter
  • Optical Multimode 3 (OM3) fiber supporting 2000 MHz.km EMB at 850 nm.
  • 10 Gigabit transfers up to 300 meters using 850 nm VCSEL source
  • LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip)
  • Maximum Connector Loss: 0.50 dB
  • Typical Connector Loss: 0.30 dB
  • Typical Return Loss: -25 dB
  • Buffer Material: PVC
  • Buffer OD: 900 µm
  • Jacket Material: PVC (OFNR riser-rated)
  • Jacket OD: 1.8 mm
  • Installation Tensile Load: 100 N (445 lbs)
  • Long-Term Tensile Load: 50 N (222 lbs)
  • Maximum Tensile Load: 100 N/cm
  • Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
  • Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
  • Crush Resistance: 750 N/cm
  • Impact Resistance: 1,000 cycles
  • Flex Resistance: 5,000 cycles
  • Attenuation at 1300 nm: 1.0 dB/km
  • Attenuation at 850 nm: 3.5 dB/km
  • Operating Temperature: -20°C to +70°C

Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.
