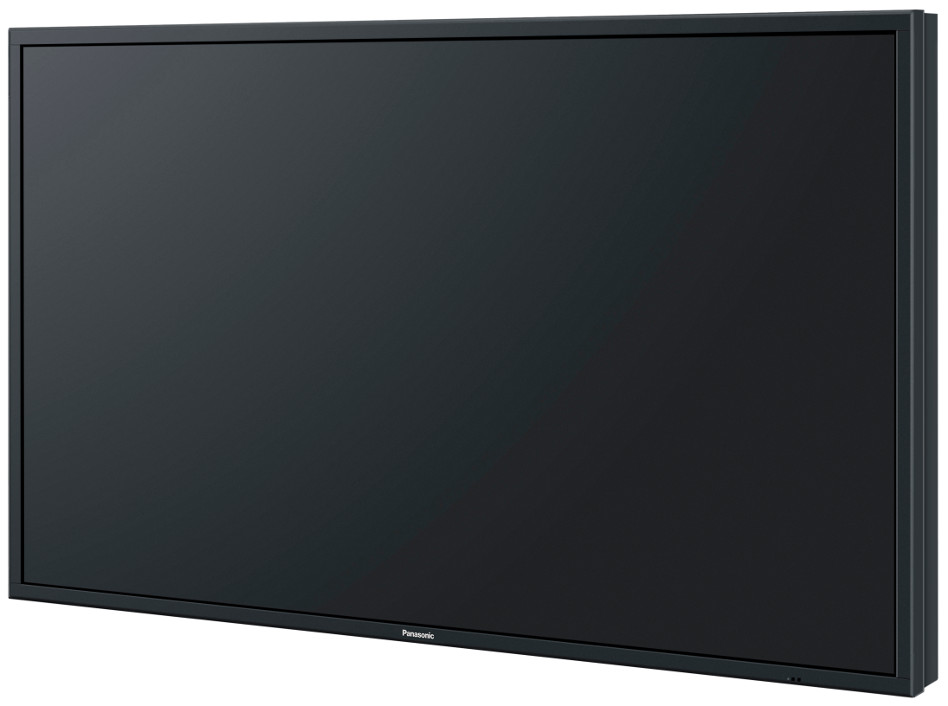

Panasonic TH-84LQ70U
84" LED 4K Display with Speakers


The Panasonic TH-84LQ70U, part of the Panasonic LQ70 Series, is a large and rugged 84" 4K display delivering outstanding picture quality and system expandability.
Learn More

Call for price! Not available online.

Related Products

The Panasonic TH-84LQ70U, part of the Panasonic LQ70 Series, is a large and rugged 84" 4K display delivering outstanding picture quality and system expandability.

  • Designed with Rugged Durability for Professional Use
    The LQ70 Series has 3.5J impact resistant protective glass on the front of the display. Paired with strong resistance to external impacts, this tough design allows safe installation in high traffic areas where many people walk by, such as train stations, airports, and shopping malls. The special frame construction also resists twisting for added reliability during installation. Ideal for rental applications, where the panel may be frequently transported and re-installed.
    The LQ70 Series can be mounted in public spaces without being placed in a protective case. When the unit gets dirty, it can be cleaned by simply wiping it with a soft cloth.
  • Portrait Installation Capability
    When the LQ70 Series is installed vertically, it can display a person in almost life-size dimensions. It is also great for digital signage use because it faithfully reproduces textures and colors of a model's clothing and accessories, helping maintain a high-quality brand image. In addition, vertical installation has no effect on the lifetime of the panel.
    The LQ70 Series' high-resolution images clearly show even the fine textures of objects. When placed near the entrance of a store, the display should effectively catch the attention of people walking by.
  • High Reliability Enables Continuous 24/7 Operation
    In addition to being impact resistant, the LQ Series is capable of constant, 24/7 operation, providing reliable use in public spaces where many people gather, such as airports, train stations, and shopping malls, as well as installation in control rooms. It is also equipped with a variety of input/output terminals for versatile applications.
    *Note: For long time display, a moving image is recommended. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying moving images.

Excellent 4K Image Quality

  • Stunning Panasonic 4K Quality Right Down to the Details
    With approximately 8,290,000 pixels, or about 4 times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life, finely nuanced images. With an optimal viewing distance of 1.5 times the screen height, the 4K display is an excellent choice for meeting rooms. Where images are often viewed up close, and creates impressive ambience in signage applications for commercial facilities, where it can be expected to attract considerable attention. A 3D LUT (Look-Up Table) developed for broadcast monitors also enables stunning color reproduction in places ranging from low to high brightness.
    *Note: A comfortable viewing distance varies depending on the type of image, the viewing environment, and the physical condition of the viewer.
  • Non-4K Sources Are Also Beautifully Compensated
    Panasonic's new-generation image processing technology (Detail Clarity Processor*3) also reproduces non-4K image content, such as Full-HD images and PC signals, with high picture quality. In addition, it compensates motion images for smooth, non-blurry display, which was difficult with conventional models.
    *Note: Optimize the frequency and level of the input signal in horizontal and vertical directions to produce beautifully sharp, clear images.
  • Various Interfaces for 4K 60p Video Input
    The LQ70 Series includes interfaces for 4K60p video input as standard equipment. As well as HDMI video input, it comes with DisplayPort that support 4K60p video. This provides for input from a variety of 4K devices. SDI connection is also possible using an optional 3G-SDI terminal board.

Easy Installation & System Expandability

  • Designed for easy transportation and installation
    By mounting eyebolts to the installation holes of the LQ70 Series and attaching hooks to these eyebolts, the unit can easily be moved and installed using a hoisting device such as a crane. The resilient frame resists twisting and distortion, thus reducing the burden on installation staff.
    • The unit must be installed or uninstalled only by a specially trained technician.
    • The display withstands vibration and impact, and eye bolts can be mounted in installation screw holes to allow easy use of pulleys and cranes. Eyebolts MUST NOT be used for permanent ceiling-suspended installation..
  • Existing plasma display mounting fixtures can be used
    The size and positions of mounting holes on the LQ70 Series are the same as those on a large Panasonic plasma display (103-inch/85-inch model). This enables the use of existing peripheral accessories. When replacing a Panasonic plasma display with the LQ70 Series, the existing mounting fixtures can be used, thus reducing labor and replacement cost.
  • Capable of 4-Input Multi Display with no processor required
    The LQ70 Series features a 4-Input Multi Display function. The image can be switched from a full-screen display to a 4-Input Multi Display with a single press of a remote control button. Ideal for checking details in various applications, such as videoconferences, digital signage, and surveillance monitoring.
    • Some restrictions exist for input signals and display splitting.
    • 3G-SDI input and 4K image are not supported by the 4-Input Multi Display function.
  • SLOT NX Versatile 4K Input
    The SLOT NX makes it possible to change the interface to match the application. If the optional 3G-SDI Terminal Board is mounted, the LQ70 Series can be connected with SGI. This feature is convenient for use in broadcasting stations, for rental use and for long-distance connection. The LQ70 Series is expandable and will accommodate 4K input in the future.
    -SLOT NX is not compatible with SLOT 2.0.
    -Require 2 boards for 4K/60p

Panasonic TH-84LQ70U Additional Features:

  • Built-in Speaker
    The 20W (10 W + 10 W) speakers are built into the rear of the display. There is no need for external speakers when using content that has a soundtrack.
    *Note: For higher volume sound, use an external audio output and more powerful speakers.
  • Local Dimming Function
    This function controls the LED backlight intensity of particular parts of the displayed image. This significantly increases the contrast ration of a certain area of the screen image.
  • Screen Saver
    The screen saver reduces the afterimages that can occur when continuously displaying still images or 4:3 images for long periods of time.
  • Light Sensor for ECO
    The backlight brightness is automatically adjusted according the viewing environment. This feature can help reduce power consumption.
    *Note: [Sensor] of [Power Save] mode is ON.
  • Input Search
    When there is no signal, the specified input signal is automatically switched.
  • Early Warning Software Compatibility (ET-SWA100 [optional])
    Optional ET-SWA100 Early Warning Software (sold separately-contact your Full Compass Sales Professional for more information) lets you check the status of system equipment with a tablet or PC located at a distance from the monitoring server. This helps to quickly solve any problems that might occur.
  • Automatic Picture Position
    Simply press the Auto Setup key on the remote control to position the picture. This function automatically corrects the horizontal and vertical picture positions, the Clock Phase, and the Dot Clock when an RGB signal is input. The adjustment results in optimal standard values for horizontal and vertical picture sizes.
    *Note: When digital RGB signal input, Dot Clock, and Clock Phase cannot be made.
  • Tamper-Resistant Settings
    You can prevent operating errors in public places by making tamper-resistant settings in advance.
    • Button Lock: Restricts the button operations for the display.
    • Control User Level: Restricts the key operations for the remote control.

The Panasonic TH-84LQ70U Offers a Wide-Range of Professional Applications

  • Public information
    The high-resolution screen is ideal for fine text in airport flight displays and train schedules. The rugged design also provides excellent durability.
  • Store signage
    Product details and textures are very true-to-life. The outstanding expression of the large 4K display effectively captures attention.
  • Rental & staging
    Superb durability and easy installation allow for safe and secure use in events. High-quality images and the large-screen presence raise the level of excitement. Real-time presentation is also achieved by suppressing the delay time from input to display.
  • Control rooms
    The high resolution and large screen size make previously difficult-to-see images sharp and clear. It's ideal for monitoring, because even slight movements can be easily detected. It's also fully capable of 24/7 operation.
  • Broadcast studios
    The beautiful 4K large screen provides sharp real-life images. Color temperature can be set from 3000K to 11500K. And an optional terminal board enables SDI connection, ideal for broadcast station or studio use.
  • Meeting rooms
    The large-screen display provides clear visibility even for meetings with a lot of people attending, and high-definition images are ideal for design and simulation use.

Panasonic TH-84LQ70U Specifications:


  • Screen Size (Diagonal): 84-inch
  • Panel Type: IPS /Edge-LED
  • Aspect Ratio: 16:9
  • Effective Display Area: 73.3" W x 41.3" H (1861 x 1047mm)
  • Number of Pixels: 3840 H x 2160 V pixels
  • Brightness (Typ): 500cd/m2
  • Dynamic Contrast Ratio: 500000:1
  • Contrast Ratio: 1400:1
  • Response Time: 12 ms
  • Viewing Angle (Horizontal/Vertical): 178° / 178°

Connection Terminal

  • HDMI In:
    • HDMI TYPE A Connector x 2 (Up to 4K@ 50/60 Hz)*1
    • HDMI TYPE A Connector x 2 (Up to 2K@ 50/60 Hz)*1
  • DisplayPort In: DisplayPort x 1 (DP1.2a)*1
  • DVI-D In/Audio In (L/R): DVI-D 24-pin x 1/Stereo Mini Jack (M3) x 1 set (Shared with PC In)
  • PC In/Audio In (L/R): Mini D-sub 15-pin x 1 (Female)*2/Stereo Mini Jack (M3) x 1 set (Shared with DVI-D In)
  • Function Slot: SLOT NX x 2 (Vacant)


  • Serial In / Out  D-sub 9-pin x 1, RS-232C Compatible
  • LAN  RJ45 x 1 100BASE-TX, Compatible with PJLink™ (Shared with DIGITAL LINK)
  • DIGITAL LINK  RJ45 x 1 (Shared with LAN )


  • Audio Out: Stereo Mini Jack (M3) x 1
  • Built in Speaker: 20 W [10 W + 10 W] (10 % THD)


  • Power Requirements: 110-127 V (U model)/220-240V (W model), AC, 50/60 Hz
  • Power Consumption: 560 W (U model), 540 W (W model)


  • Dimensions: 76.7" W x 44.9" H x 3.9" D (1949 x 1141 x 99mm)
  • Bezel Width: 1.3" (32.5mm)
  • Weight: Approx. 238.1 lbs (108.0kg)
  • Protective Glass: YES

Operating Environment

  • Temperature: 32°F to 104°F (0°C to 40°C)
  • Humidity: 20 % to 80 % (Non condensation)
  • Altitude: 0~7874ft (2400 m)*3

*1 HDCP supported, Embedded audio supported
*2 RGB/YPbPr switchable
*3 Environmental temperatures to use this unit at high altitudes 459 ft (1400 m) and higher and below 7874ft (2400 m) above sea level: 32°F to 95°F (0°C to 35°C) When using the unit where it is 4393ft (1499 m) and higher and below 7874ft (2400 m) above sea level, make sure to set to [ON].

More Notes:
All information and specifications subject to change without notice. For more information, please refer to the items posted under the "Documentation" tab.
