Gantom Lighting PR25
Qty:
In Stock

Similar Products

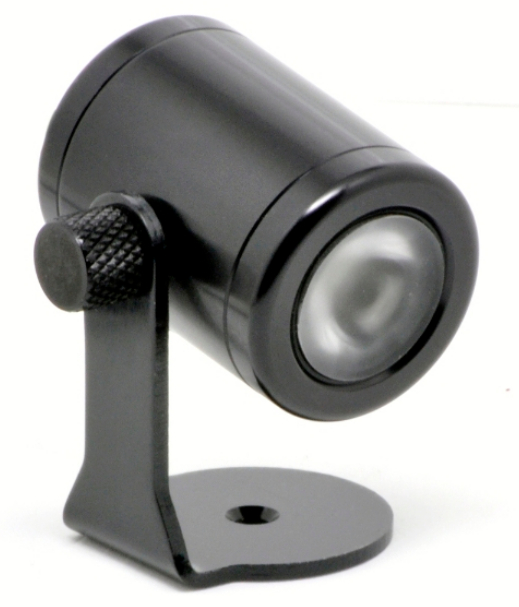

The Gantom Lighting PR25 Precision Z Floodlight produces a soft point-source cool white light equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package. The fixture’s modular design allows it to be swapped with other fixtures without the hassle of cutting wires, allowing for fast design changes and reconfiguration. The industrial machined aluminum chassis gives the Precision Z an elegant form yet functions as a rugged shell and heat sink to protect the LED and core electronics even in outdoor and underwater applications. Internal driver circuitry ensures constant output over a wide range of input voltage and extends the fixture life beyond 50,000 hours.

Applications:

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Museums displays (wall mounted artwork and display cases)
  • Theater and stage accent lighting
  • Mobile displays
  • Retail spaces
  • Architectural accent lighting
  • Machinery

Gantom PR25 Features:

  • Great for space constrained applications
  • 1W LED with 95% energy savings compared to 20W halogen lamp
  • Low voltage and minimal heat for improved safety over incandescent sources
  • Internal constant current driver gives highly efficient and consistent output
  • PWM dimmable (10%-100%)
  • Easy installationand reconfiguration
  • Dual polarity input
  • Minimal maintenance required with over 50,000 hour lamp life
  • Indoor and outdoor use

Gantom PR25 Specifications:

  • Max wattage: 1.5W
  • Input voltage: 9-15VDC (12VDC nominal)
  • Current draw: 125mA @ 12VDC
  • Power supply: for use with class 2 transformer or battery
  • Beam angle: 62°
  • Field angle: 84°
  • Color Temperature: 6500K
  • CRI: 70
  • Ingress Protection: IP68-3ft
  • Material: Anodized aluminum
  • LED: Edison A
  • Certifications: UL and CE
  • Power connector: 2.1mm DC jack with screw terminaladapter
  • Output:
    • Distance: 1.0m (3.3ft)
      • Center Beam: 66lx (6.1fc)
      • Beam Width: 1.2m (3.9ft)
      • Distance: 2.0m (6.6ft)
    • Center Beam: 15lx (1.4fc)
      • Beam Width: 2.4m (7.9ft)
      • Distance: 3.0m (9.8ft)
    • Center Beam: 5lx (0.5fc)
      • Beam Width: 3.6m (11.8ft)
