Gantom Lighting PR16
Precision Z Warm White Micro Spot


Our Price: $61.75
List Price: $65.00
You save 5%!
Write the first review.
Gantom Lighting PR16
In Stock

Related Products

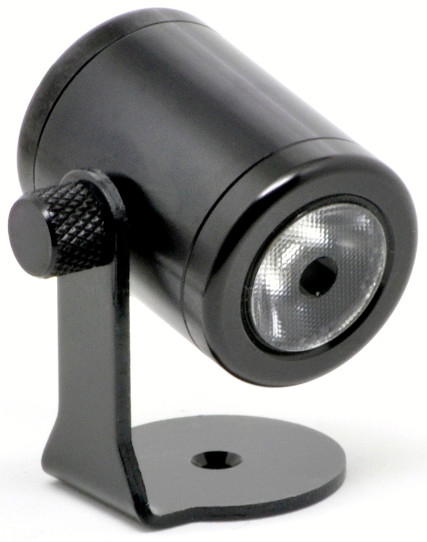

The Gantom Lighting PR16 Precision Z Spotlight Warm White beam version produces a concentrated point-source light equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package. The fixture’s modular design allows it to be swapped with other fixtures without the hassle of cutting wires, allowing for fast design changes and reconfiguration. The industrial machined aluminum chassis gives the Precision Z an elegant form yet functions as a rugged shell and heat sink to protect the LED and core electronics even in outdoor and underwater applications. Internal driver circuitry ensures constant output over a wide range of input voltage and extends the fixture life beyond 50,000 hours.


  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Museums displays (wall mounted artwork and display cases)
  • Theater and stage accent lighting
  • Mobile displays
  • Retail spaces
  • Architectural accent lighting
  • Machinery

Gantom Lighting PR16 Precision Z Warm White Spotlight Features:

  • Great for space constrained applications
  • 1W LED with 95% energy savings compared to 20W halogen lamp
  • Low voltage and minimal heat for improved safety over incandescent sources
  • Internal constant current driver gives highly efficient and consistent output
  • PWM dimmable (10%-100%)
  • Easy installation and reconfiguration
  • Dual polarity input
  • Minimal maintenance required with over 50,000-hour lamp life
  • Indoor and outdoor use

Gantom Lighting PR16 Precision Z Warm White Spotlight Specifications:

  • Fixture Wattage:  1.5W
  • LED Wattage:  1W
  • Input Voltage:  9-15VDC (12VDC nominal)
  • Current Draw:  125mA @ 12VDC
  • Power Supply:  for use with class 2 transformer or battery
  • Beam Color:  Warm White
  • Beam Angle:  11 degrees
  • Field Angle:  32 degrees
  • Ingress Protection:  IP68-3ft
  • Housing Material:  Anodized aluminum
  • LED:  Edison A
  • Certifications:  UL and CE
  • Power Connector:  2.1mm DC jack with screw terminal adapter

NOTE:  For more information on the Warm White beam characteristics, please refer to the Gantom Lighting Precision Z Datasheet found under the "Documentation"tab.

Gantom Lighting PM31  30mm Recessed Downlight Trim for Precision Z, Gantom iQ, and Gantom iQx Fixtures
Gantom Lighting PM31 30mm Recessed Downlight Trim for Precision Z, Gantom iQ, and Gantom iQx Fixtures
The Gantom PM31 is a 30mm recessed downlight trim for use with their Precision Z, Gantom iQ, and Gantom iQx fixtures.
