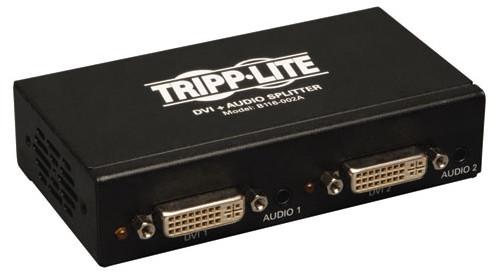

Tripp Lite B116-002A
Single Link 2-Port DVI Splitter with Audio and Signal Booster - 1920 x1200 at 60Hz / 1080p (DVI F/2xF)

OUR PART #  B116-002A

Our Price: $98.60
List Price: $128.00
You save 23%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

With Tripp Lite's 2-Port DVI + Audio Splitter [model B116-002A], you can transmit a DVI-D Single Link video signal and 3.5 mm. audio signal to two sets of monitors and speakers. Supports DVI Single Link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p. The unit is HDCP, EDID, and DDC compatible. A built-in signal booster allows you to extend the distance between the splitter and connected monitors past the 16 ft. (5 m.) distance limitation.

For source video resolutions anywhere from 1600 x 1200 @ 60Hz to 1920 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 49 ft. (15 m.). This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 65 ft. (20 m.) from the splitter, and 16 ft. (5 m.) from the connected monitor.

For source video resolutions lower than 1600 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 65 ft. (20 m.). This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 114 ft. (35 m.) from the splitter, and 16 ft. (5 m.) from the connected monitor.

The number of connected monitors/speakers can be expanded by cascading up to three levels of splitters. Plug and Play...no software or drivers required. Mounting hardware is included with the product, and allows it to be rackmounted, wallmounted or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Typical Applications

Use where DVI-D Single Link video and 3.5 mm. audio signals need to bedisplayed on multiple sets of monitors/speakers

System Requirements:

  • Video graphics card with a DVI-D or DVI-I connector
  • Monitors with a DVI-D or DVI-I connector
  • Speakers and/or monitor with a 3.5 mm. audio connector

Tripp Lite B116-002A Includes:

  • B116-002A
  • Mounting Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5AOutput: 5V, 2A)
  • Owner’s Manual

Tripp Lite B116-002A Features:

  • Transmit a DVI-D Single Link video signal and 3.5 mm.audio signal to two sets of monitors and speakers
  • Supports DVI Single Link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p
  • HDCP, EDID, and DDC compatible
  • Built-in signal booster allows you to extend the distance between the splitter and connected monitors past the 16 ft. (5 m.) distance limitation
  • The number of connected monitors/speakers can be expanded by cascading up to three levels of splitters
  • Plug and Play...no software or drivers required. Mounting hardware is included with the product, and allows it to be rackmounted, wallmounted or pole-mounted
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B116-002A Specifications:

  • Overview:
    • Display Style:  Splitter; Signal Booster
    • Model Type:  DVI
  • Physical:
    • Unit Dimensions (HxWxD):  1.1" x 4.5" x 2.5"(2.8cm x 11.4cm x 6.4cm)
    • Unit Weight:  0.5 lbs. (0.23kg)
  • Connections:
    • Connector A:  DVI-I (FEMALE) & 3.5MM(FEMALE)
    • Connector B:  DVI-I (FEMALE) (X2) & 3.5MM (FEMALE)(X2)
  • Product Warranty Period (Worldwide):  1-year limited warranty

† Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. Consult your Sales Professional for more information regarding Tripp Lite's testing agencies.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

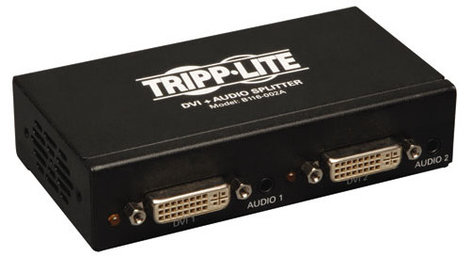

Tripp Lite B116-002A
