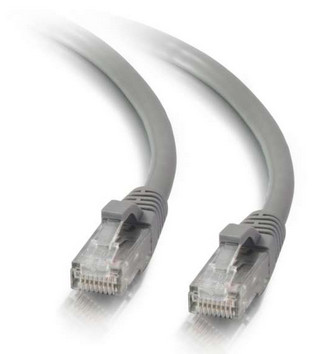

Cables To Go 19145 200' CAT5e Snagless Unshielded UTP Network Patch Cable in Gray

For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.

C2G 19145 Features:

• Snagless design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires
• Available in 10 colors to color-code a network
• Available in lengths up to 250ft
• Product Uses:
  • 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
  • 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
  • 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
  • Voice

C2G 19145 Specifications:

• Warranty : Lifetime
• Weight : 4.766 LB
• Length : 200.00 Foot
• Electrical Specifications:
  • Conductor DC Resistance: 89 Ohm/km (maximum)
  • Insulation Resistance: 100 Ohm/km (minimum)
  • Dielectric Strength: 500 MV/m
• Physical Characteristics:
  • Conductor Type/Size - Bare Copper Stranded, 24 AWG (7/0/2.0)
• Insulation:
  • Material - H-D PE
  • Diameter - 0.95 ± 0.05mm
  • Colors - Blue/Blue-White, Orange/Orange-White, Green/Green-White, Brown/Brown-White
• Jacket:
  • Material - FR-PVC
  • Nominal Thickness - 0.55mm
  • Outer Diameter - 5.30mm
• Connector:
  • Material - Polycarbonate
  • Hood Material - Molded PVC
  • Contact Material - Copper alloy plated with gold-50µ
  • Number of contacts - Eight
• Other Specifications:
  • Approvals - RoHS Compliant, Verified to EIA/TIA 568B.2
  • Wired - TSB 568B (AT&T 258A)
  • Package Type - Polybag
