Product Overview

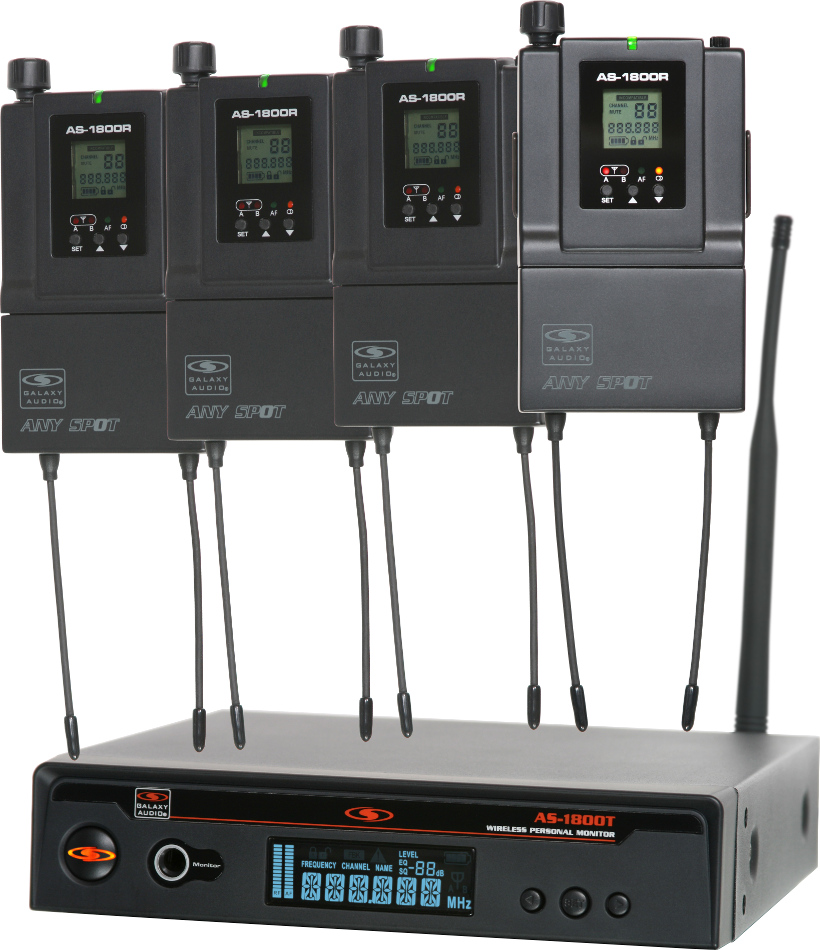

The Galaxy Audio AS-1800-4 Band Pack in-ear monitor system is designed with features for the professional and includes four (4) receivers, four (4) pairs of earbuds and one (1) transmitter. The AS-1800-4 is designed to get the whole band wireless in one package and will allow a band to send one stereo mix to 4 individuals.
The AS-1800R body pack receiver features a maximum output of 150 mW to the included EB3 ear buds, and is sure to be plenty loud for any environment. The receiver has a squelch adjustment, stereo/mono switch, LCD display, button lock, and a Magnesium Alloy Construction. Add as many additional receivers as needed at any time (sold separately).
The EB3 earbuds include three pairs of silicon sleeves (small, medium and large) for the right fit and feature a standard 1/8" (3.5mm) stereo plug.
Galaxy Audio AS-1800-4 Features:
- AS-1800T Transmitter:
- Easy to Read LCD
- Two (2) 1/4" Line Outputs (unbalanced)
- Volume Control
- Two (2) XLR/1/4" Combo Inputs
- Naming Function
- 30/100 mW Selectable Transmitter Output
- Monitor Output
- Detachable BNC Antenna
- AS-1800R Receiver:
- True Diversity
- Magnesium Alloy Construction
- 45 Hz - 18 kHz frequency response
- Mixed Mono Mode
- Frequency Display
- Backlit LCD
- Volume Control
- Battery Level indicator
- 150 mW headphone output
- Runs on 2AA Batteries (7 hours-Alkaline)
- Button Lock
- Squelch adjustment
- Volume Knob
- Auto Mute
- Stereo/Mono Switch
- EB3 Earbuds:
- Include three (3) pairs of silicon sleeves for the perfect fit (small, medium and large)
- Standard 1/8" (3.5mm) stereo plug
Galaxy Audio AS-1800-4 Specifications:
- AS-1800T Transmitter:
- Main Frame Size: EIA STANDARD 1/2 U
- Channels: 32 Channels / 640 Selectable Frequencies
- Frequency Stability: +/- 0.0005%, Phase Lock Loop frequency control
- Available Frequencies:
- B2: 538 - 554 MHz
- B3: 554 - 570 MHz
- Modulation Mode: FM stereo modulation
- Output Power: 30mW or 100mW
- Operating Range: 300 ft (100M) typical (in open space)
- Oscillation: PLL synthesized
- Spurious Rejection: < -60dBm
- Maximum Deviation Range: +/- 68 kHz
- Band Width: 16 MHz
- S/N Ratio: > 105dB
- T.H.D.: < 0.7% @ 1 kHz
- Frequency Response: 45 Hz - 18 kHz +/- 1dB
- Audio Input: Two (2) Line level XLR/1/4" Combo jacks
- Audio Output: Two (2) 1/4" (6.3mm) unbalanced jacks
- Dimensions: 1.7" x 8.2" x 8.1" (44mm x 209mm x 206mm)
- Weight: 2.3 lbs (1.04 kg)
- AS-1800R Receiver:
- Channels: 32 Channels / 640 Selectable Frequencies
- Frequency Stability: +/- 0.0005%, Phase Lock Loop frequency control
- Available Frequencies:
- B2: 538 - 554 MHz
- B3: 554 - 570 MHz
- Modulation Mode: FM stereo modulation
- Operating Range: 300 ft (100M) typical (in open space)
- Oscillation: PLL synthesized
- Sensitivity: 6dBµV, S/N > 60dB at 25 deviation (mono)
- Band Width: 16 MHz
- Max. Deviation Range: +/- 68 kHz
- S/N Ratio: > 105dB
- T.H.D.: < 0.7% @ 1 kHz
- Frequency Response: 45 Hz - 18 kHz +/- 1dB
- Stereo Separation: 45dB (at 1 kHz)
- Output Connector: 1/8" (3.5mm) stereo earphone connector
- Output Power: 150mW at 1 kHz (THD 1%)
- Battery: AA X 2
- Current Consumption: 185mA typical
- Battery Life: About 7 hours
- Dimensions: 4.25" x 2.6" x 0.87" (108mm x 66mm x 22mm)
- Weight: 0.35 lbs (0.16 kg)
