Cables To Go 29298
Short Range HDMI Over Cat5 Extender Kit with Auto Equalization

OUR PART #:  29298

C2G 29298 Transmitter
C2G 29298 Receiver
C2G 29298 Power Supply

Click a thumbnail to see more images. (6 total)

Our Price: $148.44
List Price: $149.99

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Cables To Go 29298
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

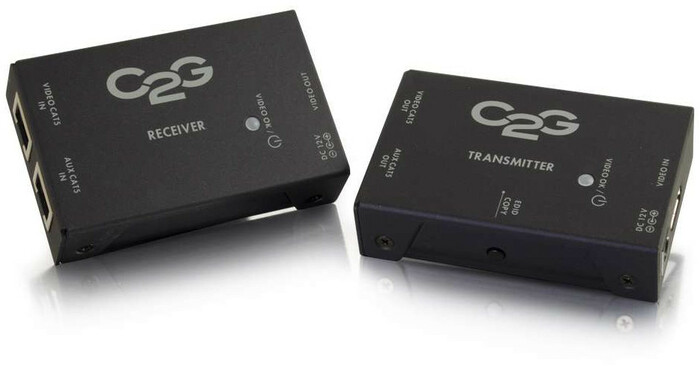

The C2G model 29298 Short Range HDMI over Cat5 Extender kit is an ideal solution for extending HDMI audio/video signals beyond the typical 50 foot length limitation of a HDMI cable. This solution is able to extend HDMI up to 160 feet and requires the use of two Cat5 patch cables. Auto equalization makes installation easy regardless of the length of the Cat5 patch cables used. Simply make the HDMI and Cat5 cable connections and the transmitter and receiver will automatically adjust to optimize the video for the length of cable used. EDID pass through is supported to ensure that content is sent at the optimal resolution for the display. HDCP is supported, allowing protected content to be passed through this extension solution. The maximum resolution supported will vary depending upon the type and length of the Cat5 patch cable.

C2G 29298 Includes:

  • Transmitter
  • Receiver
  • Foot pad set
  • Power adapter
  • User guide

C2G 29298 Features:

  • Extends HDMI audio/video signals up to 160 feet
  • Requires the use of two standard Cat5 patch cables
  • Uses auto equalization
  • Supports EDID pass through, HDCP and up to a 1080p resolution
  • Kit includes both the transmitter and receiver units

Maximum video resolution extension distance:

  • Cat6 - 1080i -160ft
  • Cat6 -1080p - 130ft
  • Cat5e (solid conductor) - 1080i -160ft
  • Cat5e (solid conductor) -1080p - 65ft
  • Cat5e (stranded conductor)-1080i - 130ft
  • Cat5e (stranded conductor) -1080p - 50ft

NOTE: This solution includes one power adapter which must be connected to the receiver for proper operation. The transmitter is designed to draw power from the HDMI source device. Some HDMI source devices are unable to output the power required for the transmitter to function which results in no image being displayed. In those instances, an HDMI Voltage Inserter (42223 or 42236) maybe required.

C2G 29298 Specifications:

Video Characteristics

  • Maximum video resolution extension distance:
    • Cat6 - 1080i - 160ft
    • Cat6 -1080p - 130ft
    • Cat5e (solid conductor) - 1080i - 160ft
    • Cat5e (solid conductor) -1080p - 65ft
    • Cat5e (stranded conductor) -1080i - 130ft
    • Cat5e (stranded conductor) -1080p - 50ft

Power Adapter Specifications

  • Input - 100~240 VAC, 50~60Hz, 0.6A
  • Output - 12 VDC, 1.5A
  • Cable Length - 5ft
  • Pin Diameter - OD: 5.5mm, ID: 2.1mm
  • Center Pin Polarity - Positive

Physical Characteristics

  • Dimensions (HxWxD): 0.8" x 2.0" x 3.1"
  • Operating Temperature: 0°~40°C, 0~80% RH (Non-condensing)
  • Storage Temperature: 0°~40°C, 0~80% RH (Non-condensing)
  • Enclosure: Metal
  • Color: Black
  • Weight: 1.447 lbs.
  • Warranty: 3 Years
