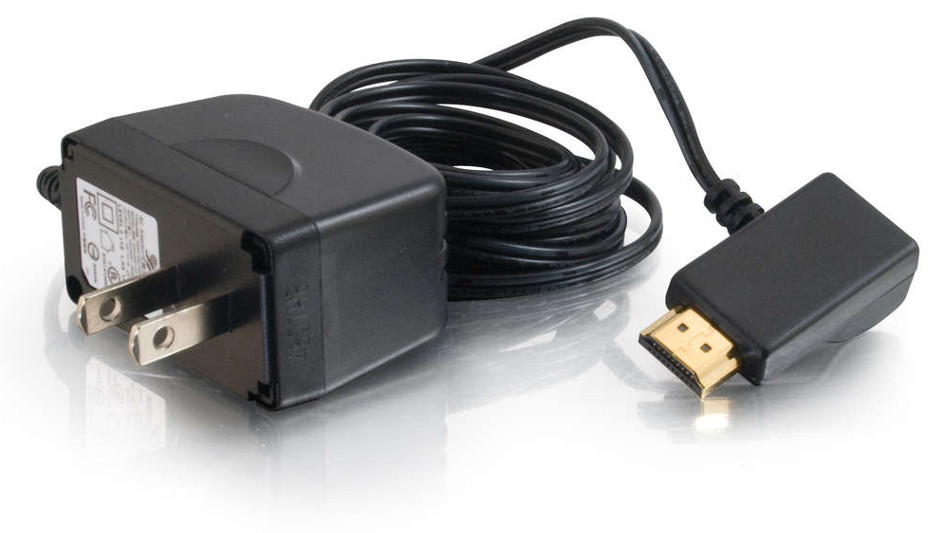

Cables To Go 42223
HDMI Voltage Inserter

OUR PART #:  42223

The C2G 42223 is a HDMI Voltage Inserter that helps to avoid hot plug, EDID and HDCP errors caused when proper voltages are not present on the HDMI connection bus.
Learn More
Our Price: $18.04
List Price: $24.99
You save 28%!
Write the first review.
Cables To Go 42223
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The C2G 42223 is a HDMI Voltage Inserter that helps to avoid hot plug, EDID and HDCP errors caused when proper voltages are not present on the HDMI connection bus. It's the ideal solution for supporting HDMI bus-powered devices such as extenders, active cables with embedded chip sets, or signal sensing switches. HDMI was not designed to support bus-powered accessories. The power supplies associated with source devices such as computers, teleconferencing codecs, media players and set-top boxes are designed, according to HDMI standards, to deliver a 55mA hot plug supply. When an accessory demands more current than the source can supply, the system may fail to operate dependably. Insufficient power may manifest as a flashing image (HDCP problem), distorted video (EDID related issues), or even a complete loss of the image (hot plug assertion failure) Maintaining the proper voltages in the HDMI System is critical to the hardware “handshake”, HDCP key authentication and exchange, EDID information exchange and hot plug connection detect.

The C2G 42223 voltage inserter isolates the power from the source device and provides a full 5 volts and up to 1000mA of clean, dedicated power to support HDMI switching, splitting and extension accessories. If an installation leverages active cables with embedded chipsets, embedded electronic-to-optical media conversion, signal-sensing auto-switching or similar devices, then this power inserter will be a critical performance element.

Instructions For Use:

  • Connect the voltage inserter directly to the HDMI output port of the source device.
  • Connect a HDMI cable from the HDMI output of the voltage inserter to the HDMI input of the display or other HDMI device.
  • Connect the AC adapter of the voltage inserter to an available power outlet.

C2G 42223 Features:

  • Isolates power from a HDMI source device
  • Stabilizes HDMI Vbus at a proper 5 Volts and increases current capacity to 1000mA
  • Fully compliant with all UltraHD and 4K performance requirements

C2G 42223 Specifications:

  • Color: Black
  • UPC: 757120422235
  • Weight: 0.220 lbs.
  • Warranty: 1 Year
