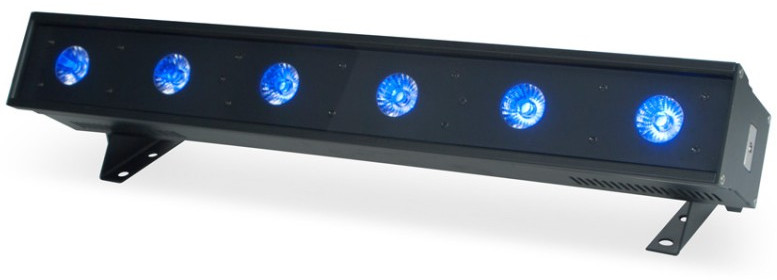

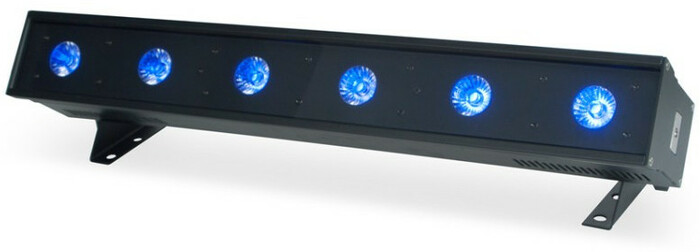

ADJ Ultra Hex Bar 6 6x10W RGBAW+UV LED Linear Fixture

OUR PART #: ULTRA-HEX-BAR-6 MFR #: ULT652

Copied to clipboard

The ADJ Ultra HEX Bar 6 is a versatile LED Linear fixture with 6x 10-Watt , 6-IN-1 HEX LEDs. ...Read more

ADJ Ultra Hex Bar 6 6x10W RGBAW+UV LED Linear Fixture Image 1
ADJ Ultra Hex Bar 6 6x10W RGBAW+UV LED Linear Fixture Image 2
ADJ Ultra Hex Bar 6 6x10W RGBAW+UV LED Linear Fixture Image 3
ADJ Ultra Hex Bar 6 6x10W RGBAW+UV LED Linear Fixture Image 4
ADJ Ultra Hex Bar 6 6x10W RGBAW+UV LED Linear Fixture
Our Price: $299.99
List Price: $409.95
You save 27%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The ADJ Ultra HEX Bar 6 is a versatile LED Linear fixture with 6x 10-Watt , 6-IN-1 HEX LEDs. With a 40° beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power, and DMX connectors, it’s great for uplighting a venue.

Ultra HEX Bar 6 professional features include: 5 DMX modes (6, 7, 8, 12, & 18 channel), 6 operational modes, 5 dimming curves, flicker-free operation a 4-Button DMX menu with digital display, plus ADJ’s patent pending magnetic “Quick Align” end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 12 units together via the fixtures' built-in IEC In/Out power connectors.

The Ultra HEX Bar 6 is compatible with the ADJ RFC, easy-to-use, wireless infrared remote. Alternatively the fixture may be operated via a DMX controller or the unit's built-in programs.

ADJ Ultra HEX Bar 6 Specifications:

  • Ultra bright, 23" (.5 meter) indoor Linear Bar with 6 x 10W Ultrabright HEX (RGBWA + UV: 6-IN-1) LEDs
  • Smooth RGBAW + UV color mixing
  • Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  • 5 DMX Channel Modes: 6, 7, 8 , 12, or 18 channels
  • 6 operational modes: Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color, and DMX-512 Mode
  • Patent Pending Quick Align (Magnetic)
  • Beam Angle: 40°
  • Flicker Free operation (No flickering on camera)
  • 63 built-in Color Macros
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural, & Theatre)
  • LED pulse and strobe effect
  • 2x8 Character LCD Display
  • Electronic Dimming: 0-100%
  • Includes mounting brackets to mount on a wall or set on the ground
  • Compatible with the ADJ RFC remote with RF control up to 30 ft./10M (
  • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • Power Draw: 55W
  • Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 12 Ultra Hex Bar 6 fixtures)
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Dimensions (LxWxH): 23” x 4.5” x 6.5” (585 x 110 x 165mm)
  • Weight: 6 lbs. (2.82 kg)

Note:

Features and specifications subject to change without notice.
