Product Overview

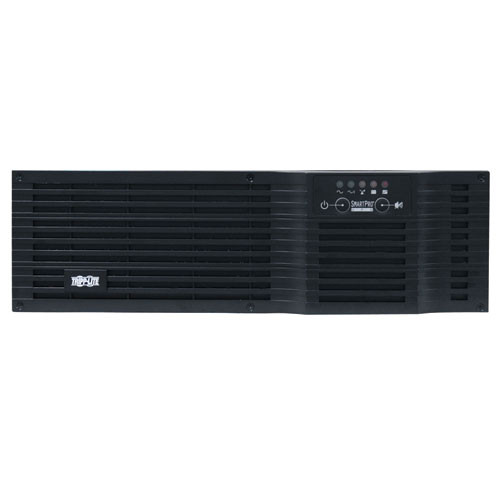

Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. Protects a variety of computer, networking and other sensitive equipment types from blackouts, voltage fluctuations and transient surges. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs.
Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage cut during overvoltages to maintain regulated 120v output over an input range of 89 to 148V or 212 to 286V. Includes C20 power inlet with set of 4 international cord sets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface.
Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode reduces energy cost and BTU emissions. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Installation accessories for rackmount and upright tower form factors included. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme.
Tripp Lite SM2200RMDVTAA Includes:
- SM2200RMDVTAA UPS system
- 5 international input power cables
- USB, DB9, EPO cabling and PowerAlert software
- 2-9USTAND tower stand kit
- 2POSTRMKITHD two-post rackmount kit
- 4POSTRAILKIT are also included
- User manual
Tripp Lite SM2200RMDVTAA Features:
- SmartPro SM2200RMDVTAA dual-voltage line interactive UPS system maintains 120V nominal output with either 120V or 230V input power
- Ideal for voice, data and networking applications requiring 120V output from worldwide power sources
- Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage cut during overvoltages
- Maintains continuous operation through blackouts, voltage fluctuations and surges
- Corrects line voltage conditions between 89 to 148V or 212 to 286V to 120V nominal output
- Standard internal battery set offers 30 minutes runtime at half load (960 watts) and 12 minutes at full load (1920 watts)
- Extended runtime is available with optional BP48V24-2U / BP48V242UTAA (limit 1) OR BP48V60RT3U / BP48V60RT3UTAA (no limit)
- Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
- Includes C20 power inlet with set of 4 international cord sets to support 5-20P, Schuko, CEE 7 / EU1-16P, British BS1363A and Italian CEI 23-16 plug types
- Includes NEMA 5-15R and 5-15/20R output receptacles
- Network-grade AC surge and noise suppression
- Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot
- HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces
- Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface
- Integrated 2-bank PDU switching supports load shedding and remote-reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs
- 95% efficiency in line power mode reduces energy cost and BTU emissions
- Utility power and voltage regulation LEDs
- Installation accessories for rackmount and upright tower form factors included
- Field-replaceable, hot-swappable internal batteries and external batterypacks
Tripp Lite SM2200RMDVTAA Specifications:
- OUTPUT:
- Output Volt Amp Capacity (VA): 2200
- Output kVA Capacity (kVA): 2.2
- Output Watt Capacity (Watts): 1920
- Output kW Capacity (kW): 1.92
- Nominal Output Voltage(s) Supported: 120V
- Frequency Compatibility: 50 / 60 Hz
- Frequency Compatibility Details: Auto-sensing
- Output Voltage Regulation (Battery Mode): +/- 5%
- UPS Output Receptacles: 4 5-15R outlet(s); 4 5-15/20R outlet(s)
- Load Management Receptacles: Two switchable single-outlet 5-15R load banks
- Output AC Waveform (AC Mode): Sine wave
- Output AC Waveform (Battery Mode): Pure Sine wave
- INPUT:
- Rated input current (Maximum Load): 16A (120V), 10A (230V)
- Nominal Input Voltage(s) Supported: 120V AC; 230V AC
- UPS Input Connection Type: 5-20P; C20 inlet
- UPS Input Connection Description: C20 inlet and 5 compatible plugsets (5-20P, Schuko CEE7, EU1-16P, British BS1363, Italian CEI 23-16)
- Input Circuit Breakers: 20A
- UPS Input Cord Length (ft.): 6
- UPS Input Cord Length (m): 1.8
- Input Phase: Single-Phase
- BATTERY:
- Full Load Runtime (min.): 12 minutes (1920 watts)
- Half Load Runtime (min.): 30 minutes (960 watts)
- Expandable Battery Runtime: Extended runtime supported via optional external battery packs
- External Battery Pack Compatibility: BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
- DC System Voltage (VDC): 48
- Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90% (internal batteries)
- Internal UPS Replacement Battery Cartridge: RBC49-DV (quantity 2 required)
- Battery Access: Front panel battery access door
- Battery Replacement Description: Hot-swappable, user replaceable batteries
- VOLTAGE REGULATION:
- Voltage Regulation Description: Automatic voltage regulation (AVR) maintains 120v line power output with input range of 89 to 148 or 170 to 286
- Overvoltage Correction: Voltage reduction of 12% applies when input is between 127 and 148 (120V)
- Undervoltage Correction: Voltage boost of 12% applies when input voltage is between 96 and 108 (120V)
- LEDS ALARMS & SWITCHES:
- LED Indicators: 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
- Audible Alarm: Audible alarm indicates power-failure, overload and low-battery conditions
- Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
- Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support nominal voltage selection
- SURGE / NOISE SUPPRESSION:
- UPS AC Suppression Joule Rating: 340
- UPS AC Suppression Response Time: Instantaneous
- EMI / RFI AC Noise Suppression: Yes
- PHYSICAL:
- Installation Form Factors Supported with Included Accessories: Tower
- Included Mounting Accessory Description: Complete installation accessories available for 2 post, 4 post and tower installation
- Installation Form Factors Supported with Optional Accessories: 4 post rackmount (4POSTRAILKIT)
- Primary Form Factor: Rackmount
- UPS Power Module Dimensions (hwd, in.): 5.25 x 17.5 x 25.25
- UPS Power Module Dimensions (hwd, cm): 13.3 x 44.4 x 64.1
- Rack Height: 3U
- UPS Power Module Weight (lbs.): 104.25
- UPS Power Module Weight (kg): 47.3
- UPS Shipping Dimensions (hwd / in.): 11.5 x 29.5 x 30.5
- UPS Shipping Dimensions (hwd / cm): 29.2 x 151.6 x 129
- Shipping Weight (lbs.): 159.5
- Shipping Weight (kg): 72.4
- Cooling Method: Fan
- UPS Housing Material: Steel
- ENVIRONMENTAL:
- Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
- Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
- Relative Humidity: 0 to 95%, non-condensing
- AC Mode BTU / Hr. (Full Load): 347
- Battery Mode BTU / Hr. (Full Load): 604.4
- AC Mode Efficiency Rating (100% Load): 95%
- COMMUNICATIONS:
- Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
- Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
- PowerAlert Software: Included
- Communications Cable: USB and DB9 cabling included
- WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Network UPS Tools Compatibility: NUT compatible.
- LINE / BATTERY TRANSFER:
- Transfer Time: 2-4 milliseconds
- Low Voltage Transfer to Battery Power (Setpoint): 89 (120V), 170 (230V)
- High Voltage Transfer to Battery Power (Setpoint): 148 (120V), 286 (230V)
- SPECIAL FEATURES:
- Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
- High Availability UPS Features: Hot swappable batteries
- Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
- CERTIFICATIONS:
- UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant
- WARRANTY:
- Product Warranty Period (Worldwide): 2-year limitedwarranty
