Neutrik NC6FXX-BAG 6-pin XLRF Cable Connector, Black

OUR PART #: NC6FXX-BAG MFR #: NC6FXX-BAG

Copied to clipboard

Neutrik NC6FXX-BAGis a 6 pole female cable connector with black metal housing and silver contacts. ...Read more

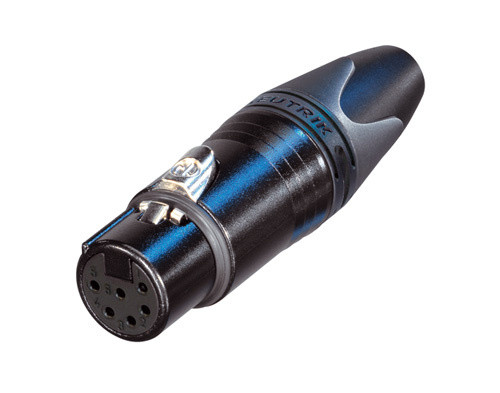

Neutrik NC6FXX-BAG 6-pin XLRF Cable Connector, Black Image 1
Neutrik NC6FXX-BAG 6-pin XLRF Cable Connector, Black
Our Price: $7.94
List Price: $9.27
You save 14%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Neutrik NC6FXX-BAGis a 6 pole female cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Neutrik NC6FXX-BAG Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NC6FXX-BAG Specifications:

  • Connection Type: XLR
  • Gender: female
  • Electrical:
    • Capacitance between contacts: = 7 pF
    • Contact resistance: = 3 mO (inner)
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 10 GO (initial)
    • Rated current per contact: 7,5 A
    • Rated voltage: < 50 V
  • Mechanical:
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 1.0 mm²
    • Wiresize: max. 18 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
  • Material:
    • Boot: Polyurethane
    • Contact plating: 2 µm Ag over 2 µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black chromium
    • Strain relief: Polyacetal (POM)
  • Environmental:
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
