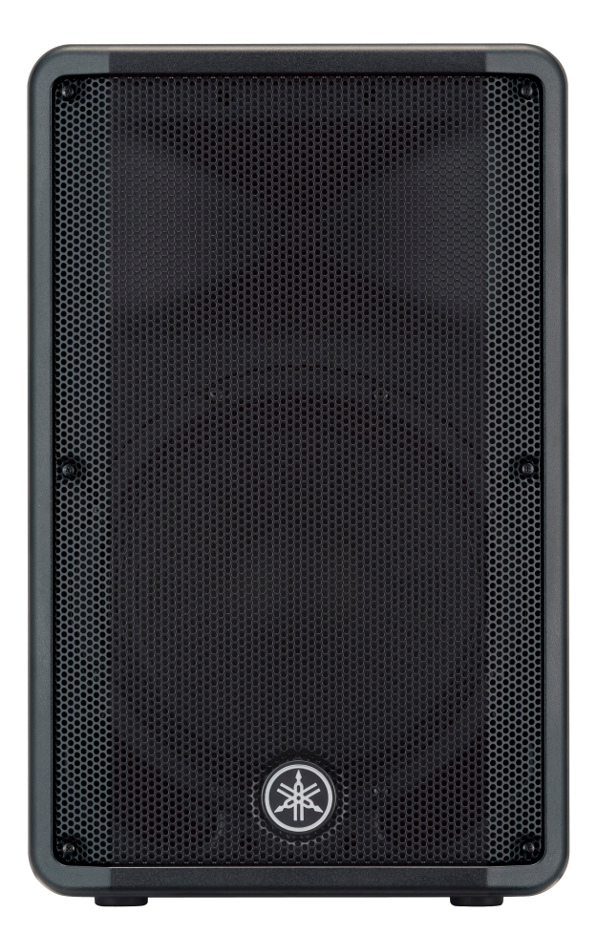

Yamaha CBR12
12" 2-Way 700 Watt Peak Passive Loudspeaker with 90°x60° Dispersion


Our Price: $324.99
List Price: $449.00
You save 28%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Yamaha CBR12 is a 12" 2-way passive loudspeaker that features a peak power output of 700 Watts, a maximum SPL of 125 dB and a 90°H x 60°V dispersion pattern. The CBR12 is designed for a variety of applications including stage monitoring thanks to its 50° symmetrical wedge angle or installation based audio systems with its M8 rigging points.

The CBR12 comes equipped with a carefully selected and customized transducer that feature a highly responsive woofer and a precise 2” compression driver, ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area. The CBR12 employs a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level. The CBR12 is equipped with one speakON jack and one 1/4" Phone jack that allow for fast and easy connectivity in both personal and professional environments.

Yamaha's CBR12 features a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, the CBR12 features a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.

Yamaha CBR12 Specifications:

  • System Type:  2-way Speaker, Bass-reflex Type
  • Frequency Range (-10 dB):  48 Hz - 20 kHz
  • Coverage Angle (HxV):  90° x 60° Constant  Directivity Horn
  • Maximum SPL (1m, peak):  125 dB SPL
  • Crossover Frequency:  2.1 kHz
  • Nominal Impedance:  8 Ohms
  • Power Rating:
    • Noise:  175 Watts
    • Program:  350 Watts
    • Peak:  700 Watts
  • Sensitivity (1W, 1m):  96 dB SPL
  • Transducers:
    • LF:  12" cone, 2" voice coil
    • HF:  1.4" voice coil, compression driver
  • Connectors:
    • (1) 1/4" Phone
    • (1) speakON NL4MP
  • Material, Color:  Plastic, Black
  • Floor Monitor Angle:  50° Symmetrical
  • Dimensions (WxHxD, including rubber feet):  14.8"  x 23.7" x 13.7" (376mm x 601mm x 348mm)
  • Net Weight:  30.6 lbs (13.9 kg)
  • Handles:  Side x2
  • Pole Socket:  35mm (Bottom x1)
  • Rigging Points:  Bottom x2, Rear x1 (fit for M8 x 15mm eyebolts)
  • Optional Speaker Brackets:  BBS251, BCS251, BWS251-300, BWS251-400
