Draper Shade and Screen 383297
StageScreen 90in x144in, 170in Diagonal with Matt White Screen Surface

OUR PART #:  383297

The Draper 383297 is part of the StageScreen® series of projection screens.
Learn More
Our Price: $3,170.00
List Price: $3,962.00
You save 20%!
Draper Shade and Screen 383297
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Draper 383297 is part of the StageScreen® series of projection screens. This particular model comes with the Matt White XT100V screen surface (no black backing), and Silver frame.

The Draper StageScreen® Series
In response to requests from leading AV rental dealers, the StageScreen is an efficient concept in projection screen design. It is designed specifically to be flown, but can also be used with legs. Either way, it is the strongest and most rigid screen on the market.

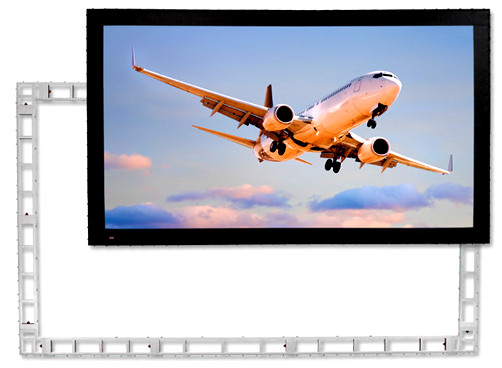

The truss system is completely modular. All available sizes of StageScreen are built from combinations of the same 6 standard color-coded frame sections pictured in the images above. Not only does this make screen assembly faster and easier, but if a frame section should ever become damaged you can replace it in seconds without tools.

AV rental dealers can easily streamline their inventory with the StageScreen. The legs are constructed using the same truss sections as the frame. The StageScreen ships with frame segments, surface, carrying case and tarp (legs sold separately). Dress Kit is available (sold separately).

Viewing Surface Information

OptiFlex (Tensioned) Family
OptiFlex surfaces are suitable for tensioning and are available on permanently tensioned screens, tab tensioned roller operated screens, or both. Choose OptiFlex for the flattest front projection viewing surfaces.

Matt White XT1000V
The perfect matt white diffusing surface. Recommended for use with all types of projectors provided ambient light can be reasonably controlled. Reflects a uniformly bright image over complete 180° viewing cone with precise resolution and accurate color balance. This surface was previously named “M1300.” This surface is GREENGUARD Children and SchoolsSM certified.

Draper 383297 Features:

  • The StageScreen utilizes an 8” truss that is significantly stronger than traditional truss folding screens.
  • It is engineered to hold tolerance after repeated usage.
  • Color coded frame sections ensure fast and easy assembly.
  • Draper performed in-house testing of the strength of the StageScreen truss compared to a folding truss screen. The results were dramatic: StageScreen proved to be over 60% stronger, holding strong long after the folding truss failed.
  • The image area of each screen is exact and true to format.
  • StageScreen can be assembled in about half the time of a comparable truss folding screen.
  • No hinges, no snaps, and no Handy Cranks are required.
  • Frame sections are connected with permanently attached threaded links and guide pins. No lost handy cranks.
  • Easy to follow color-coded assembly instructions are included with each StageScreen
  • StageScreen® features a revolutionary new viewing surface attachment method. Using the attached DuraLoop™ bungee cord loops with handy nylon pull-tabs, simply hook the surface to the posts on the frame. DuraLoops are longer lasting than traditional snaps, and provide even self-centering tension for the viewing surface. You’ll never want to use snaps again.
  • The viewing surface is stretched perfectly flat, resulting in the highest picture quality.
  • Patent Pending

Draper 383297 Specifications:

  • Surface Material:  Matt White XT1000V
  • Image Format:  16:10
  • Diagonal Size:  170"
  • Image/Viewable Area:  90" x 144"
  • Overall Size:  106 1/2" x 160 1/2"
  • Product Weight:  129 lbs.
  • Shipping Weight:  208 lbs.

Matt White XT1000V Surface characteristics and reflective performance:

  • Maximum Height Without Seams: 144"
  • Weight (g/sm):  396
  • Weight (oz/yd2):  11.68
  • Thickness (mm):  0.3
  • Cleaning:  Mild soap and water
  • Composition:  Flexible PVC
  • Gain On Axis/0° Gain:  1
  • Half Gain Angle:  Material does not reach half gain.
