JK Audio AutoHybrid IP2
2-Line VoIP Hybrid/AoIP Codec Unit

OUR PART #:  AUTOIP2

As the name implies, JK Audio's AutoHybrid IP2 functions as a two-line VoIP hybrid.
Learn More
Our Price: $926.25
List Price: $975.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

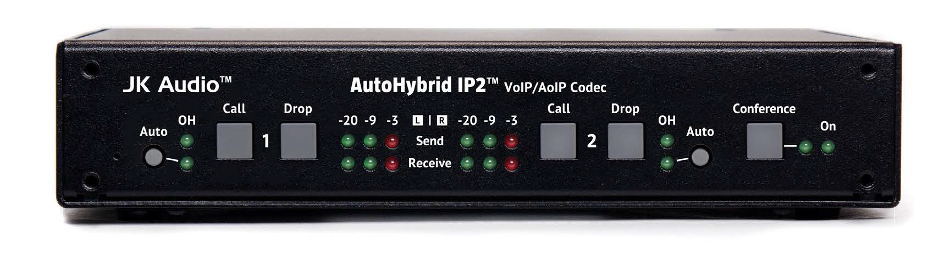

JK Audio AutoHybrid IP2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

As the name implies, JK Audio's AutoHybrid IP2 functions as a two-line VoIP hybrid. The desktop/half-rack design provides one button access to the common features of a phone line hybrid including: call control, auto-answer, and conference. Advanced call control features and VoIP line setup are provided through the internal web server. In VoIP mode, Line-level XLR jacks provide mono send and receive audio for Line 1 and Line 2.

AutoHybrid IP2 also functions as an Audio over IP (AoIP) Codec, streaming wide-band stereo audio. In AoIP mode, the XLR jacks provide stereo send and receive audio.

The AutoHybrid IP2 Remote jack allows easy connection to the JK Audio Interchange Intercom Phone Bridge, offering an auto-answer VoIP connection into your party-line intercom.

Low power consumption for Power over Ethernet (PoE) applications. External power supply included for LAN connections without PoE capability.

This small desktop unit easily converts to a rack-mount unit using the optional RA2 Rack Panel (sold separately). The RA2 holds 2 IP2s in a 1U rack space.

JK Audio AutoHybrid IP2 Features:

  • Simple 2-Line VoIP Call Control, Auto-Answer, and Conference
  • G.711, G.722 (HD Voice) VoIP Hybrid
  • 24-bit AoIP Wide Band Stereo Codec
  • Female XLR Line Input (2)
  • Male XLR Line Output (2)
  • Send and Receive LED Metering
  • LAN, USB, Remote Control Connections
  • Rear Panel Recessed Level Controls
  • Remote Control I/O Terminal Block
  • PoE or AC Mains Powered
  • Optional RA2 Rack Mount Adapter (sold separately)

JK Audio AutoHybrid IP2 Specifications:

  • Input:  Female XLR: 20k ohms / 500 mV RMS (-4 dBu nom) +12 dBu max
  • Output:  Balanced Male XLR: 50 ohms / 500 mV RMS (-4 dBu nom) +12 dBu max
  • Remote Jack:  RJ50 Proprietary interface to JK Audio products
  • Remote Header:  Removable screw terminal block: Call, Drop, Ring/OH LED, GND (x2)
  • Power:  PoE (Power over Ethernet) or +9 VDC with included AC power supply
  • Size:  7.6” x 5.3” x 1.5” (20 x 14 x 4 cm)
  • Weight:  1.2 lbs (0.5 kg)
