Product Overview

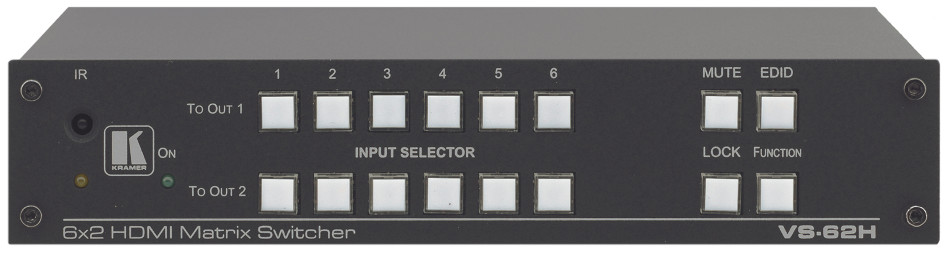

The Kramer VS-62H is a high-quality, 6x2 matrix switcher for HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.
Applications
- Conference room presentations
- Advertising applications
- Rental and staging
Features
- Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics channel).
- HDTV Compatible.
- HDCP Compliant.
- Max. Resolution - Up to 4K.
- Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
- HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, 7.1 multi-channel audio.
- 3D Pass Through.
- EDID Capture - Copies and stores the EDID from a display device.
- Auto Switching Option - For either or both outputs, last-connected or priority switching.
- Non-Volatile EDID Storage.
- Lock Button - Prevents unwanted tampering with the front panel.
- Internal Pattern Generator.
- Kramer Protocol 3000 Support.
- Flexible Control Options - Front panel buttons, IR remote (included), optional external remote IR receiver, RS-232, Ethernet, contact closure, embedded Web server.
- USB Port - For upgrading firmware.
- Size - Compact Desktop - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter (
Specifications
- For further information and specifications, please refer to items under the "Documentation" tab.
