Telex RA-7
2.4 GHz Wi-Fi Antenna with 7 dBi Gain and Reverse Polarity TNC Connector


Our Price: $73.70
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

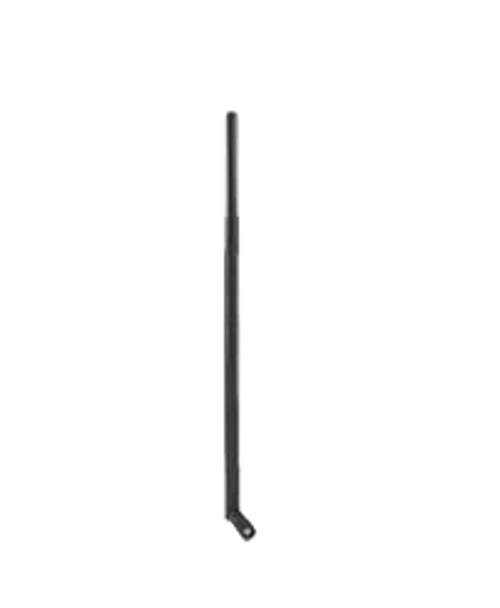

The Telex RA-7 antenna is ideally suited for IEEE 802.11b and 802.11g wireless LAN's and Bluetooth applications and other systems operating in the 2.4 GHz ISM band. The RA-7 is an omnidirectional "rubber-duck" Wi-Fi antenna that provides broad coverage. This flexible antenna features a tilt-and-swivel reverse polarity TNC connector allowing them to be used vertically, at a right angle or any angle in-between.

Telex RA-7 Features:

  • 2.4 GHz ISM Band
  • IEEE 802.11b and 802.11g Wireless LAN
  • Reverse-polarity TNC conector
  • RoHS Compliant

Telex RA-7 Specifications:

  • Frequency: 2400 - 2500 MHz
  • Impedance: 50 Ohms
  • Finish: Matte Black
  • Connector: Reverse polarity TNC plug
  • Polarization: Vertical
  • RoHS Compliant: Yes
  • Gain: 7 dBi
  • Beam Width: 360°H x 25°V
  • Max. Power: 50 Watts
  • VSWR: < 1.5:1
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
